Case
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

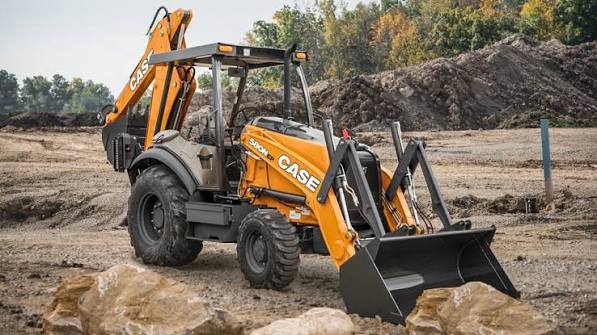

Image 1 of 5
Specifications
68 data points
Operating Specifications
| Operating Weight 4wd | 15,862 lb |
|---|---|
| Operating Weight | 15,810 lb |
| Operating Weight 2wd | 14,564 lb |
| Fuel Capacity | 42.1 gal |
| Hydraulic System Fluid Capacity | 28.1 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Tire Size Front - 2wd / 4wd | 11L x 16 / 12x 16.5 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 120 A |
| Turning Radius | 137 in |
| Transmission Fluid Capacity | 5.1 gal |
| Max Weight | 17,454 lb |
| Rear Axle Fluid Capacity | 3.6 gal |
| Front Axle Fluid Capacity | 2.1 gal |
| Backhoe Flow- gallons | 28.6 gal/min |
Engine
| Engine Model | FPT F5HFL463D |
|---|---|
| Displacement | 208 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 89.9 hp |
| Net Power | 68.4 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Emissions Certification | Tier 4 Final |
| Net Max Torque | 306 lb-ft |
Hydraulic System
| Pump Flow Capacity | 28.5 gal/min |
|---|---|
| Relief Valve Pressure | 3,350 psi |
| Pump Type | Parker P330 Single Selection Gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 84 in |
| Transport Width | 86 in |
| Transport Length | 277 in |
Transmission
| Max Speed | 21.3 mph |
|---|---|
| Max Speed - Reverse | 29.1 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power shuttle |
Brakes & Steering
| Service brake | Wet Disc |
|---|
Fluid Capacities
| Fuel Tank | 30.2 gal |
|---|---|
| Engine oil with filter | 2.2 gal |
| Front axle | 336 in³ |
| Rear Axle | 3.6 gal |
Tires & Wheels
| Rear Tires Size | 19.5L x 24 |
|---|---|
| Front Tires Size | 12L x 16.5 (4WD) |
General Specifications
| Operating Weight lbs (kg) | 17,751 (8,052) Starting 2024 Model Year |
|---|---|
| Max Digging Depth ft. (m) | 18.2 (5.6) Starting 2024 Model Year |
| Backhoe Loading Height ft. (m) | 14.1 (4.3) Starting 2024 Model Year |
| Travel Speed 4th Gear Fwd MPH (kmh) | 24.6 (39.6) Starting 2024 Model Year |
| Loader SAE HP (kw) | 90 (67) Starting 2024 Model Year |
| Loader Lift Capacity lbs. (kg) | 6,803 (3,086) Starting 2019 Model Year |
| Loader Breakout Force lbs. (kg) | 10,622 (4,724) Starting 2024 Model Year |
Backhoe
| Dig Depth | 178 in |
|---|---|
| Reach From Swivel | 220 in |
| Dig Depth - Extended | 220 in |
| Load Height - Extended | 170 in |
| Reach From Swivel - Extended | 260 in |
| Reach at Load Height - Extended | 113 in |
| Load Height | 141 in |
Loader
| Bucket Capacity | 0.90 yd³ |
|---|---|
| Lift Capacity | 6,803 lb |
| Clearance at Max Dump Height | 107 in |
| Bucket Breakout Force | 9,607 lb |
| Bucket Width | 82 in |
| Reach at Max Dump Height | 32 in |
| Dig Depth | 176 in |
Performance
| Dipper stick Lift Capacity | 4,343 lb |
|---|---|
| Bucket digging force (ISO) | 113 lb |
