Case
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

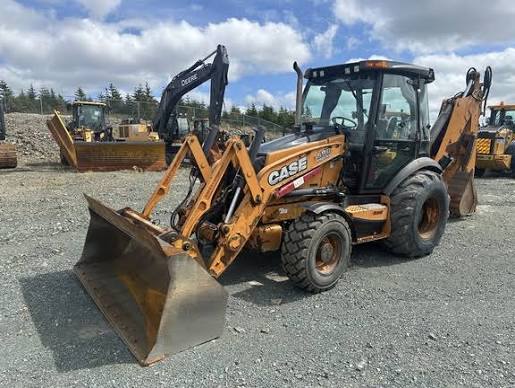

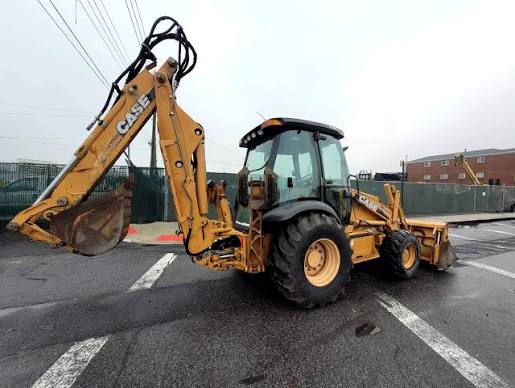

Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight 2wd | 15,268 lb |
|---|---|
| Fuel Capacity | 42.0 gal |
| Hydraulic System Fluid Capacity | 34.3 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Tire Size Front - 2wd / 4wd | 14.5x16.1/14x17.5 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 90 A |
| Turning Radius | 149 in |
| Transmission Fluid Capacity | 5.5 gal |
| Max Weight | 19,578 lb |
| Rear Axle Fluid Capacity | 3.8 gal |
| Front Axle Fluid Capacity | 1.8 gal |
Engine
| Engine Model | Family III 445T/M2 Tier II certified |
|---|---|
| Displacement | 272 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 99.0 hp |
| Net Power | 98.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 289 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 42.5 gal/min |
|---|---|
| Relief Valve Pressure | 3,050 psi |
| Pump Type | Gear-type tandem transmission driven |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 85 in |
| Transport Width | 94 in |
| Transport Length | 283 in |
| Height to Top of Suspended Cab | 107 in |
Transmission
| Max Speed | 25.5 mph |
|---|---|
| Max Speed - Reverse | 30.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | 4-speed synchromesh with hydraulically actuated clutches |
Tires & Wheels
| Rear Tires Size | 21Lx24/21Lx24 |
|---|
Backhoe
| Dig Depth | 192 in |
|---|---|
| Reach From Swivel | 236 in |
| Dig Depth - Extended | 240 in |
| Load Height - Extended | 166 in |
| Bucket Dig Force | 14,718 lb |
| Reach From Swivel - Extended | 283 in |
| Reach at Load Height - Extended | 154 in |
| Bucket Dig Force - Extended | 14,718 lb |
Loader
| Bucket Capacity | 1.10 yd³ |
|---|---|
| Clearance at Max Dump Height | 108 in |
| Bucket Breakout Force | 10,729 lb |
| Bucket Width | 93 in |
| Reach at Max Dump Height | 28 in |
| Dig Depth | 4 in |
