Case
Caterpillar
434E

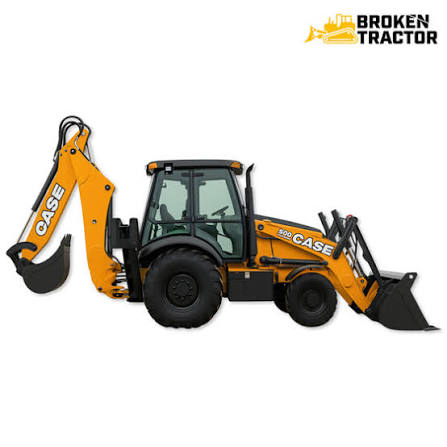

Backhoe Loader
37 specifications
1 / 5
Image 1 of 5
Specifications
68 data points
Operating Specifications
| Operating Weight 4wd | 20,458 lb |
|---|---|
| Operating Weight | 20,458 lb |
| Fuel Capacity | 42.1 gal |
| Hydraulic System Fluid Capacity | 34.9 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Tire Size Front - 2wd / 4wd | 14x17.5 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 120 A |
| Turning Radius | 150 in |
| Transmission Fluid Capacity | 5.2 gal |
| Rear Axle Fluid Capacity | 3.6 gal |
| Front Axle Fluid Capacity | 2.3 gal |
| Backhoe Flow- gallons | 43.0 gal/min |
Engine
| Engine Model | FPT F5BFL413A |
|---|---|
| Displacement | 208 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 110.0 hp |
| Net Power | 108.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Engine Make | CASE |
| Bore | 4 in |
| Stroke | 4 in |
| Emissions Certification | Tier 4 Final |
| Net Max Torque | 339 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 43.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,450 psi |
| Pump Type | Variable Displacement Axial Piston |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 84 in |
| Transport Width | 94 in |
| Transport Length | 285 in |
| Height to Top of Suspended Cab | 107 in |
Transmission
| Max Speed | 24.2 mph |
|---|---|
| Max Speed - Reverse | 15.9 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Transmission Type | Powershift |
Brakes & Steering
| Service brake | Wet Multi Disc |
|---|
Fluid Capacities
| Fuel Tank | 34.9 gal |
|---|---|
| Cooling system | 4.8 gal |
| Engine oil with filter | 2.2 gal |
| Front axle | 525 in³ |
| Rear Axle | 3.6 gal |
Tires & Wheels
| Front Tires Size | 14.0L x 17.5 (4WD) |
|---|
General Specifications
| Operating Weight lbs (kg) | 21,325 (9,673) Starting 2024 Model Year |
|---|---|
| Max Digging Depth ft. (m) | 19.5 (5.9) Starting 2024 Model Year |
| Backhoe Loading Height ft. (m) | 15.8 (4.8) Starting 2024 Model Year |
| Travel Speed 4th Gear Fwd MPH (kmh) | 25.0 (40.2) Starting 2024 Model Year |
| Loader SAE HP (kw) | 110 (82) Starting 2024 Model Year |
| Loader Lift Capacity lbs. (kg) | 8,202 (3,721) Starting 2024 Model Year |
| Loader Breakout Force lbs. (kg) | 12,776 (5,683) Starting 2024 Model Year |
Backhoe
| Reach From Swivel | 236 in |
|---|---|
| Dig Depth - Extended | 234 in |
| Load Height - Extended | 190 in |
| Reach From Swivel - Extended | 283 in |
| Reach at Load Height - Extended | 98 in |
Loader
| Bucket Capacity | 1.29 yd³ |
|---|---|
| Lift Capacity | 8,202 lb |
| Clearance at Max Dump Height | 108 in |
| Bucket Breakout Force | 11,463 lb |
| Bucket Width | 93 in |
| Reach at Max Dump Height | 30 in |
| Dig Depth | 6 in |
Performance
| Dipper stick Lift Capacity | 6,651 lb |
|---|
