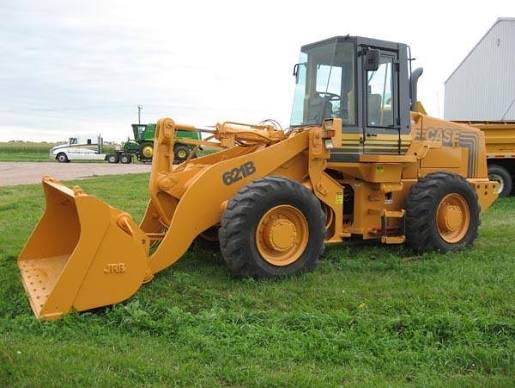

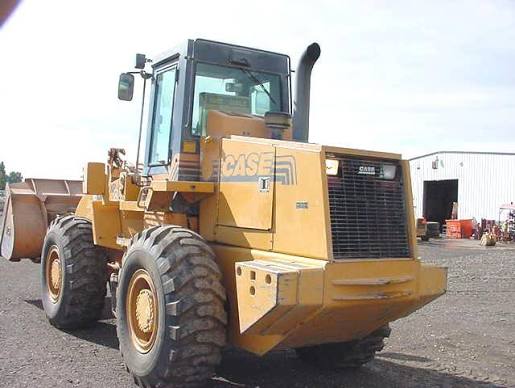

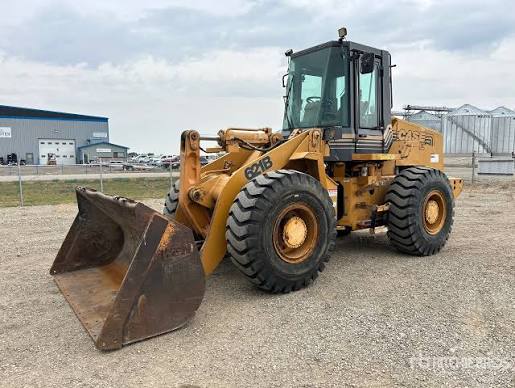

Case
621B
- Operating Weight
- 27,249 lb
- Bucket Capacity - heaped
- 2.30 yd³
- Gross Power
- 128.0 hp
- Net Power
- 116.0 hp
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 27,249 lb |
|---|---|
| Fuel Capacity | 51.0 gal |
| Tire Size | 20.5 R25 |
| Hydraulic System Fluid Capacity | 40.5 gal |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 4.0 gal |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 2.6 gal |
| Rear Axle/Diff Fluid Capacity | 2.6 gal |
| Transmission Fluid Capacity | 5.1 gal |
Engine
| Engine Model | 6T-590 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 128.0 hp |
| Net Power | 116.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Stroke | 5 in |
| Bore | 4 in |
| Max torque ISO TR14396 | 404 lb-ft |
Hydraulic System
| Raise Time | 5.7 s |
|---|---|
| Lower Time | 4.4 s |
| Dump Time | 1.5 s |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 115 in |
| Width Over Tires | 96 in |
| Length with Bucket on Ground | 270 in |
Transmission
| Max Speed - Forward | 18.8 mph |
|---|---|
| Max Speed - Reverse | 13.7 mph |
| Transmission Type | Mechanical |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.30 yd³ |
|---|---|
| Bucket Capacity - struck | 1.90 yd³ |
| Breakout Force | 23,650 lb |
| Bucket Width | 100 in |
