Case

621C XR

Wheel Loader

Operating Weight
27,091 lb
Bucket Capacity - heaped
2.39 yd³
Gross Power
139.0 hp
Net Power
130.0 hp
All wheel loaders

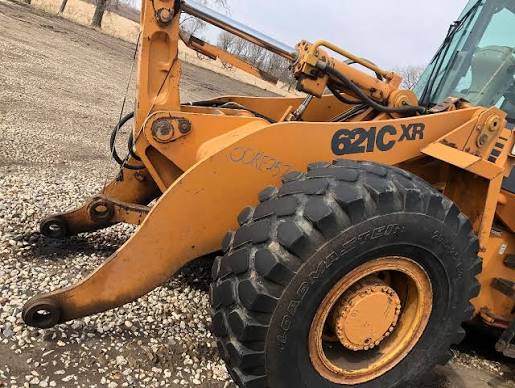

Case 621C XR Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,091 lb
Fuel Capacity51.0 gal
Tire Size20.5-25 L3
Hydraulic System Fluid Capacity40.5 gal
Static Tipping Weight18,479 lb
Operating Voltage24 V
Turning Radius205 in
Engine Oil Fluid Capacity4.0 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity5.5 gal
Rear Axle/Diff Fluid Capacity5.5 gal
Cooling System Fluid Capacity7.1 gal
Transmission Fluid Capacity2.0 gal

Engine

Engine specifications
Engine Model6T-590
Displacement359 in³
Power Measured @2,000 rpm
Gross Power139.0 hp
Net Power130.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm
Torque Rise31.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity18.6 gal/min
Raise Time5.4 s
Lower Time5.0 s
Dump Time1.5 s
Relief Valve Setting2,250 psi
Pump Typedual vane-type tandem

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab128 in
Wheelbase115 in
Width Over Tires96 in
Reach at Max Lift and Dump36 in
Length with Bucket on Ground276 in
Hinge Pin - Max Height157 in

Transmission

Transmission specifications
Max Speed - Forward23.3 mph
Max Speed - Reverse15.5 mph
Transmission Type4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.39 yd³
Bucket Capacity - struck2.00 yd³
Dump Clearance at Max Raise126 in
Breakout Force25,002 lb
Bucket Width101 in
