Case

621C XT

Wheel Loader

Operating Weight
28,810 lb
Bucket Capacity - heaped
2.39 yd³
Gross Power
139.5 hp
Net Power
130.1 hp
All wheel loaders

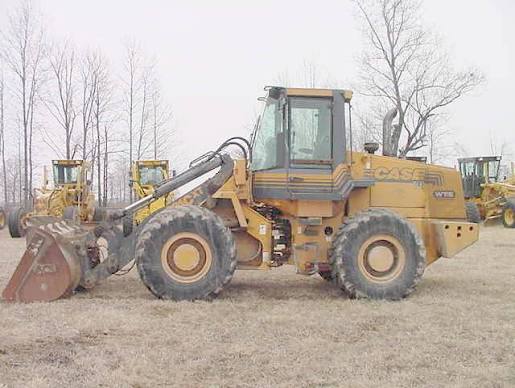

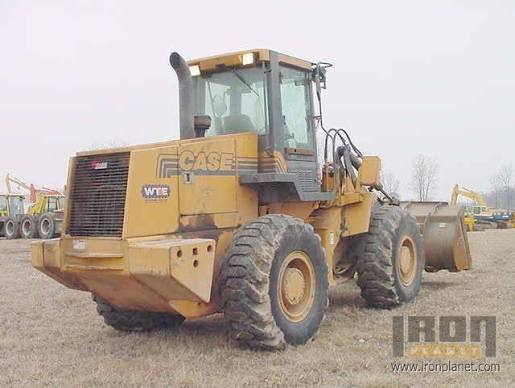

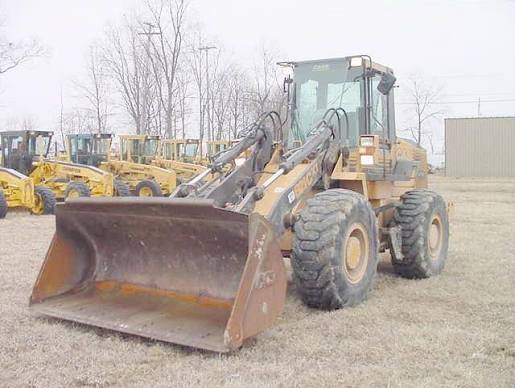

Case 621C XT Wheel Loader
1 / 5
Image 1 of 5
Image: machinerytrader.ie

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,810 lb
Fuel Capacity51.0 gal
Tire Size20.5 R25
Hydraulic System Fluid Capacity40.5 gal
Operating Voltage12 V
Turning Radius205 in
Engine Oil Fluid Capacity4.0 gal
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity2.6 gal
Rear Axle/Diff Fluid Capacity2.6 gal
Cooling System Fluid Capacity6.9 gal
Transmission Fluid Capacity2.0 gal

Engine

Engine specifications
Engine Model6T-590
Displacement359 in³
Power Measured @2,000 rpm
Gross Power139.5 hp
Net Power130.1 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Stroke5 in
Bore4 in
Torque Rise31.0 %
Torque425 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity61.6 gal/min
Raise Time5.4 s
Lower Time4.4 s
Dump Time1.7 s

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab128 in
Wheelbase115 in
Width Over Tires96 in
Hinge Pin - Max Height152 in

Transmission

Transmission specifications
Transmission TypeMechanical w/ electronic control
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.39 yd³
Bucket Capacity - struck2.00 yd³
Breakout Force27,809 lb
Bucket Width101 in
