Case
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

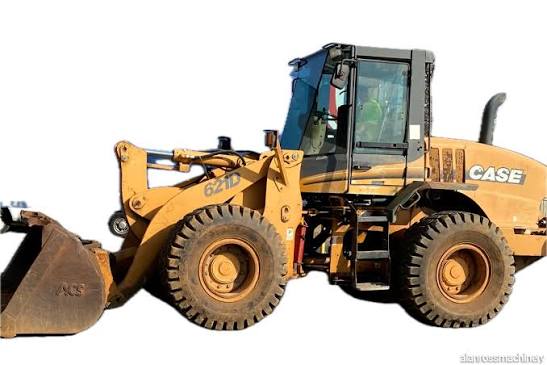

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 27,877 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Tire Size | 20.5x25 |
| Hydraulic System Fluid Capacity | 30.0 gal |
| Static Tipping Weight | 20,318 lb |
| Operating Voltage | 24 V |
| Turning Radius | 204 in |
| Engine Oil Fluid Capacity | 4.3 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 6.3 gal |
| Transmission Fluid Capacity | 5.0 gal |
Engine
| Engine Model | 668TA/M2 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 148.0 hp |
| Net Power | 136.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1,200 rpm |
| Torque Rise | 33.0 % |
Hydraulic System
| Pump Flow Capacity | 45.2 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 4.4 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | closed centered variable displacement |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 115 in |
| Width Over Tires | 95 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 281 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 24.0 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - struck | 2.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 26,739 lb |
