Case

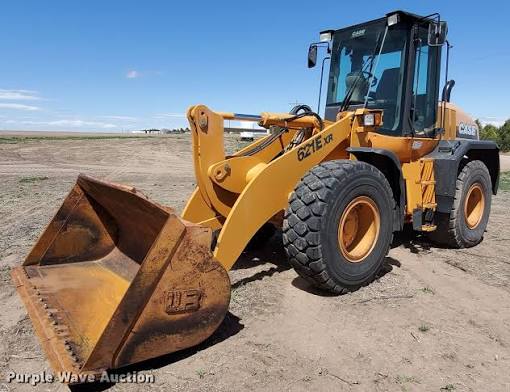

621E XR
- Operating Weight
- 27,604 lb
- Bucket Capacity - heaped
- 3.00 yd³
- Gross Power
- 156.0 hp
- Net Power
- 146.0 hp
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 27,604 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Tire Size | 20.5 R25 |
| Hydraulic System Fluid Capacity | 39.0 gal |
| Static Tipping Weight | 19,145 lb |
| Operating Voltage | 24 V |
| Turning Radius | 203 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 9.5 gal |
| Transmission Fluid Capacity | 5.0 gal |
| Rated Bucket Capacity | 3.00 yd³ |
Engine
| Engine Model | Family IV 667TA/EDB Tier III certified |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 156.0 hp |
| Net Power | 146.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1,300 rpm |
| Make | Case |
| Torque Rise | 33.0 % |
Weights
| Operating Weight | 27,604 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 45.2 gal/min |
|---|---|
| Raise Time | 6.3 s |
| Lower Time | 4.7 s |
| Dump Time | 1.3 s |
| Relief Valve Setting | 3,600 psi |
| Pump Type | closed centered pressure/flow compensated |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 115 in |
| Width Over Tires | 100 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 307 in |
| Hinge Pin - Max Height | 168 in |
Transmission
| Max Speed - Forward | 24.0 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | 4F/3R Proportional w/ Electronic Control Module torque sensing autoshift/manual shift and modulation |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.00 yd³ |
|---|---|
| Bucket Capacity - struck | 2.60 yd³ |
| Dump Clearance at Max Raise | 127 in |
| Breakout Force | 23,925 lb |
| Bucket Width | 103 in |
