Case

621F

Wheel Loader

Operating Weight
26,711 lb
Bucket Capacity - heaped
2.69 yd³
Gross Power
172.0 hp
Net Power
152.0 hp
All wheel loaders

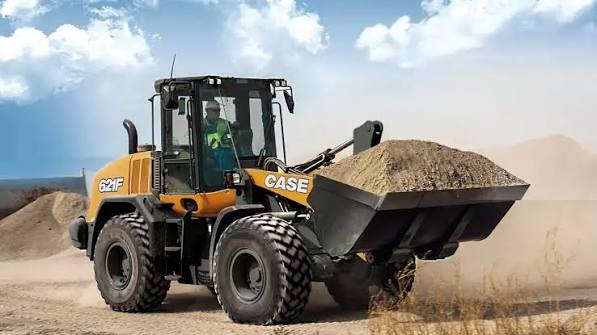

Case 621F Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,711 lb
Fuel Capacity65.0 gal
Static Tipping Weight19,559 lb
Operating Voltage24 V
Rear Axle Oscillation24 °
Alternator Supplied Amperage120 A
Front Axle/Diff Fluid Capacity5.9 gal
Rear Axle/Diff Fluid Capacity5.9 gal
Cooling System Fluid Capacity7.1 gal
Transmission Fluid Capacity7.1 gal
Rated Bucket Capacity4.50 yd³
DEF tank capacity15.6 gal

Engine

Engine specifications
Engine ModelFPT F4HFE613W
Displacement409 in³
Gross Power172.0 hp
Net Power152.0 hp
Number of Cylinders6
Max Torque538 lb-ft
MakeCase
Alternator120 A
EmissionsTier 4
Engine speed - Rated speed, full load2,000 rpm

Weights

Weights specifications
Operating Weight26,711 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity45.2 gal/min
Pump TypeAxial Piston Pump
Steering pump typeArticulation
Maximum system pressure3,625 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab134 in
Wheelbase115 in
Width Over Tires100 in
Reach at Max Lift and Dump59 in
Length with Bucket on Ground288 in
Hinge Pin - Max Height151 in
Dump reach @ full height, 45 degrees dump39 in

Transmission

Transmission specifications
Max Speed - Forward24.0 mph
Max Speed - Reverse15.5 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears3
Differential lockF: LSD / R: LSD

Brakes & Steering

Brakes & Steering specifications
Service brakeWet Multi Disc

Bucket

Bucket specifications
Bucket Capacity - heaped2.69 yd³
Dump Clearance at Max Raise114 in
Breakout Force25,426 lb

Hydraulic cycle times (unloaded)

Hydraulic cycle times (unloaded) specifications
Total cycle time11.9 s
