Case
621G
- Operating Weight
- 28,160 lb
- Bucket Capacity - heaped
- 2.80 yd³
- Gross Power
- 172.0 hp
- Net Power
- 151.0 hp
1 / 5

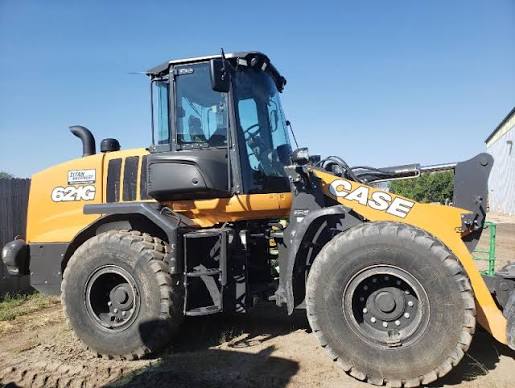

Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 28,160 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 24 ° |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 7.1 gal |
| Transmission Fluid Capacity | 7.1 gal |
| Rated Bucket Capacity | 2.50 yd³ |
| DEF tank capacity | 15.6 gal |
Engine
| Engine Model | FPT F4HFE613W |
|---|---|
| Displacement | 411 in³ |
| Gross Power | 172.0 hp |
| Net Power | 151.0 hp |
| Number of Cylinders | 6 |
| Max Torque | 538 lb-ft |
| Make | Case |
| Torque Rise | 33.0 % |
| Alternator | 120 A |
| Rated Engine Speed | 2,000 rpm |
| Emissions | Tier 4 |
Weights
| Operating Weight | 28,159 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 45.2 gal/min |
|---|---|
| Pump Type | not published |
| Steering pump type | Articulation |
| Maximum system pressure | 3,625 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 115 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 59 in |
| Length with Bucket on Ground | 292 in |
| Hinge Pin - Max Height | 151 in |
| Turning Radius Outside Tires | 206 in |
| Dump reach @ full height, 45 degrees dump | 39 in |
Transmission
| Max Speed - Forward | 24.0 mph |
|---|---|
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Differential lock | F: LSD / R: LSD |
Brakes & Steering
| Service brake | Wet Multi Disc |
|---|
Bucket
| Bucket Capacity - heaped | 2.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 25,471 lb |
General Specifications
| Operating Weight | 28159 (12773) Starting 2024 Model Year |
|---|---|
| Bucket Capacity | 2.75 (2.1) Starting 2024 Model Year |
| Engine type | Case/FPT Starting 2019 Model Year |
| Engine Power | 162 (121) Starting 2019 Model Year |
| Max Dump Height | 9.2 (2.8) Starting 2019 Model Year |
Hydraulic cycle times (unloaded)
| Total cycle time | 12.3 s |
|---|
Performance
| Tipping Load | 21,189 lb |
|---|
