Case
Caterpillar
D3K LGP
Crawler Dozer
35 specifications
1 / 5

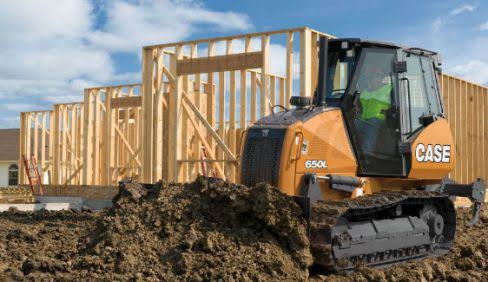

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 16,250 lb |
|---|---|
| Fuel Capacity | 41.0 gal |
| Cooling System Fluid Capacity | 5.7 gal |
| Final Drives Fluid Capacity | 3.8 gal |
| Engine Oil Capacity | 3.3 gal |
| Hydraulic Fluid Capacity | 16.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | 445TA/EHA |
|---|---|
| Displacement | 274 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 80.5 hp |
| Net Power | 74.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 295 lb-ft |
| Make | Case |
Hydraulic System
| Pump Flow Capacity | 20.3 gal/min |
|---|---|
| Relief Valve Pressure | 3,025 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 104 in |
| Length of Track on Ground | 84 in |
| Width Over Tracks | 72 in |
| Length w/ Blade | 165 in |
Transmission
| Max Speed - Forward | 5.5 mph |
|---|---|
| Max Speed - Reverse | 5.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 1 |
| Number of Reverse Gears | 1 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 56 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 39 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 16 in |
| Ground Contact Area | 2,630 in³ |
General Specifications
| Weight lbs (kg) | 16,250 (7,370) — Starting 2016 Model Year |
|---|---|
| Engine type | CASE 445TA/EG7a Tier III — Starting 2016 Model Year |
| Engine Power HP (KW) | 74 (55) — Starting 2016 Model Year |
Standard Blade
| Width | 96 in |
|---|---|
| Height | 33 in |
| Capacity | 1.70 yd³ |
| Blade Angle (both directions) | 25 ° |
