Case

680G

Backhoe Loader

Max Speed
19.1 mph
Gross Power
88.0 hp
Net Power
80.0 hp
All backhoe loaders

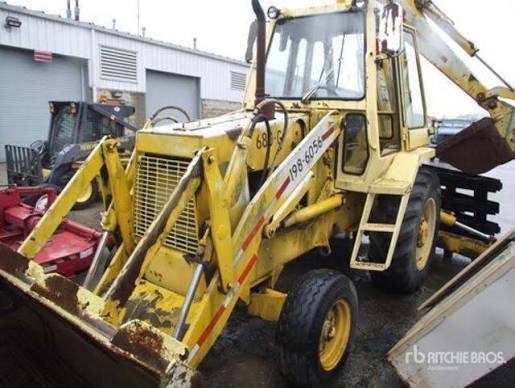

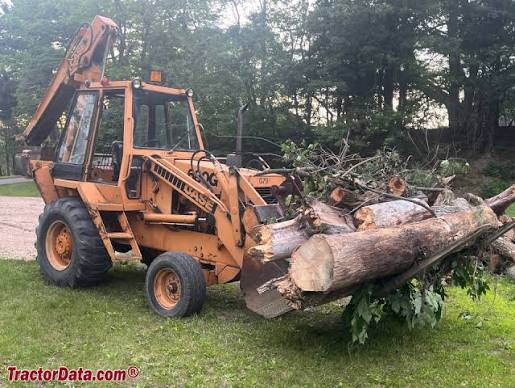

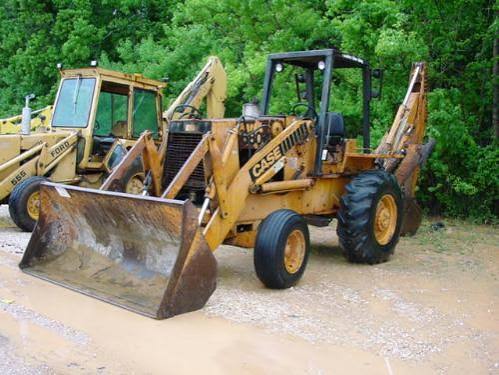

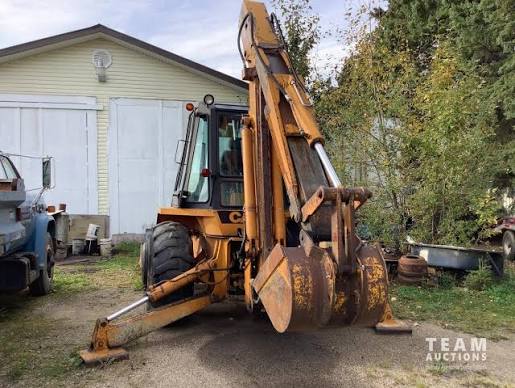

Case 680G Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity30.0 gal
Hydraulic System Fluid Capacity13.8 gal
Cooling System Fluid Capacity8.1 gal
Tire Size Front - 2wd / 4wd11.00x16
Operating Voltage12 V
Oil System Fluid Capacity2.8 gal
Alternator Supplied Amperage40 A
Max Weight15,145 lb
Axle load - front60,000 lb

Engine

Engine specifications
Engine ModelA336DDC
Displacement336 in³
Power Measured @2,200 rpm
Gross Power88.0 hp
Net Power80.0 hp
Number of Cylinders4
Torque Measured @1,500 rpm
Engine MakeJ.I. Case
Stroke5 in
Bore5 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity27.2 gal/min
Pump TypeOpen center

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase86 in
Transport Length267 in
Rear Tread Range66 in
Front Wheel Tread Width74 in

Transmission

Transmission specifications
Max Speed19.1 mph
Max Speed - Reverse19.1 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypePower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9x24

Backhoe

Backhoe specifications
Dig Depth202 in
Reach From Swivel240 in
Dig Depth - Extended251 in
Load Height - Extended151 in
Bucket Dig Force11,623 lb
Reach From Swivel - Extended287 in
Load Height138 in
Bucket Dig Force - Extended10,981 lb

Loader

Loader specifications
Clearance at Max Dump Height115 in
Bucket Breakout Force1,070,540 lb
Bucket Width86 in
Reach at Max Dump Height31 in
