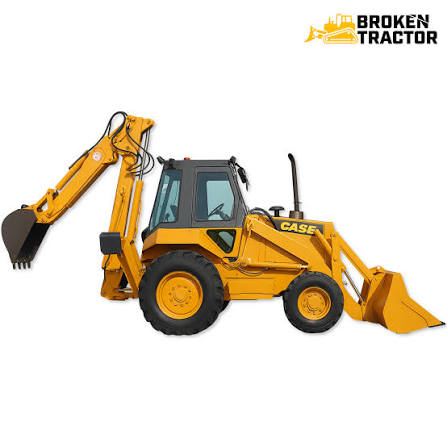

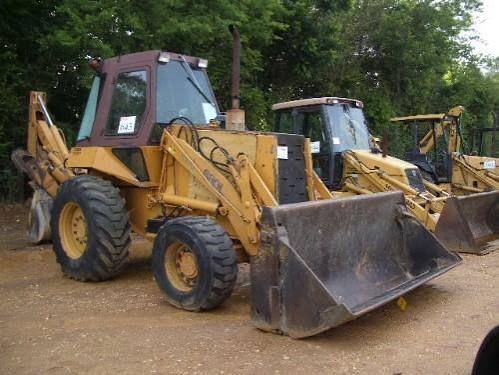

Case
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight 4wd | 17,922 lb |
|---|---|
| Operating Weight 2wd | 17,218 lb |
| Fuel Capacity | 43.1 gal |
| Hydraulic System Fluid Capacity | 14.3 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Tire Size Front - 2wd / 4wd | 11 * 16 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.8 gal |
| Alternator Supplied Amperage | 65 A |
| Transmission Fluid Capacity | 4.0 gal |
| Rear Axle Fluid Capacity | 0.7 gal |
| Front Axle Fluid Capacity | 0.7 gal |
Engine
| Engine Model | 6-590 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 101.0 hp |
| Net Power | 90.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,200 rpm |
| Engine Make | Case |
| Stroke | 5 in |
| Bore | 4 in |
| Net Max Torque | 273 lb-ft |
Hydraulic System
| Pump Flow Capacity | 18.7 gal/min |
|---|---|
| Relief Valve Pressure | 2,000 psi |
| Pump Type | Engine mounted positive displacement gear type pump |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 88 in |
| Transport Width | 96 in |
| Transport Length | 276 in |
| Height to Top of Suspended Cab | 117 in |
| Rear Tread Range | 7 in |
| Front Wheel Tread Width | 5 in |
Transmission
| Max Speed | 17.5 mph |
|---|---|
| Max Speed - Reverse | 17.5 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Transmission Type | Power shift |
Tires & Wheels
| Rear Tires Size | 19.5L* 24 |
|---|
Backhoe
| Dig Depth | 198 in |
|---|---|
| Reach From Swivel | 240 in |
| Dig Depth - Extended | 247 in |
| Load Height - Extended | 158 in |
| Bucket Dig Force | 11,289 lb |
| Reach From Swivel - Extended | 288 in |
| Reach at Load Height - Extended | 134 in |
| Load Height | 135 in |
| Bucket Dig Force - Extended | 11,812 lb |
Loader
| Bucket Capacity | 1.50 yd³ |
|---|---|
| Clearance at Max Dump Height | 114 in |
| Bucket Breakout Force | 10,020 lb |
| Bucket Width | 96 in |
| Reach at Max Dump Height | 50 in |
| Dig Depth | 3 in |
