Case

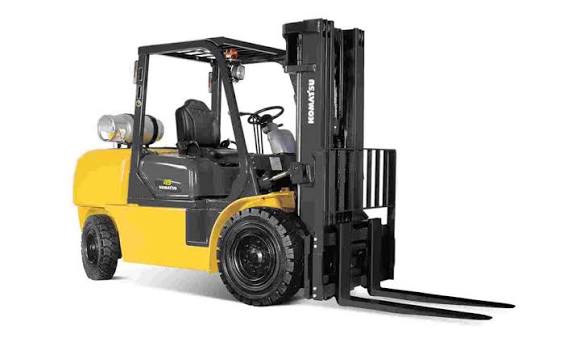

Komatsu
FG45T-5
Forklift
28 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 22,813 lb |
|---|---|
| Fuel Capacity | 35.0 gal |
| Tire Size | 13.00x24 12PR L2/G2 |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 40.0 gal |
| Alternator Supplied Amperage | 62 A |
Engine
| Engine Model | 4T-390 |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 110.0 hp |
| Net Power | 99.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 293 lb-ft |
Hydraulic System
| Pump Flow Capacity | 34.0 gal/min |
|---|---|
| Pump Type | axial piston |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 126 in |
| Width Over Tires | 103 in |
| Overall Height | 95 in |
| Length to Fork Face | 252 in |
| Turning Radius Outside Tires | 146 in |
Transmission
| Max Speed - Forward | 21.0 mph |
|---|---|
| Max Speed - Reverse | 21.0 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Lift System
| Max Lift Capacity | 8,000 lb |
|---|---|
| Max Lift Height | 516 in |
| Max Forward Reach | 335 in |
| Max Load at Max Height | 7,000 lb |
| Max Load at Max Reach | 1,900 lb |
