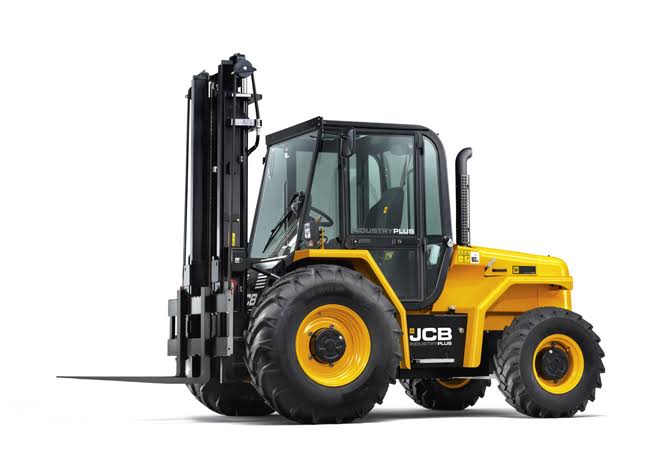

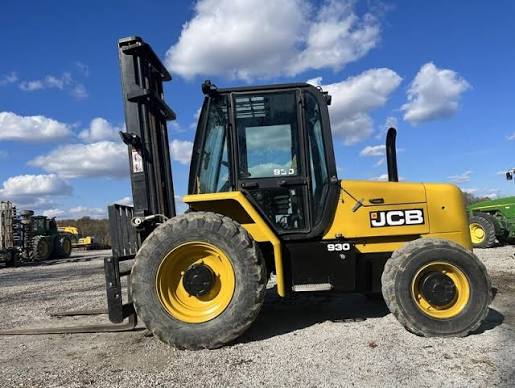

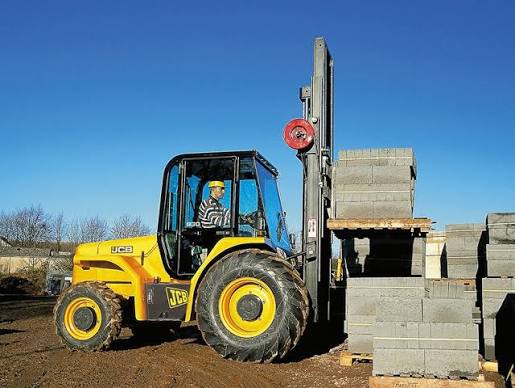

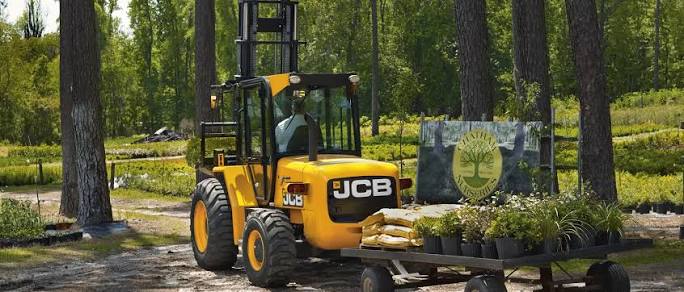

JCB 930 Forklift
1 / 5
Image 1 of 5
Image: williamsjcb.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,977 lb
Max Speed18.0 mph
Number of Front Wheels2
Number of Rear Wheels2

Engine

Engine specifications
Engine ModelJCB ECOMAX TCAE-55
Displacement269 in³
Power Measured @2,000 rpm
Number of Cylinders4
Torque Measured @1,300 rpm
Bore4 in
Stroke5 in
Power74.0 hp
Torque295 lb-ft
Cooling systemLiquid
FuelDiesel

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase84 in
Overall Width88 in
Overall Height - mast lowered101 in
Length to Fork Face141 in
Height to Top of Overhead Guard102 in
Max Fork Height180 in
Angle of departure53 °

Transmission

Transmission specifications
Transmission TypeSyncroshuttle
Gear typeManual
Shuttle (Forward-Reverse)Power shuttle
Torque converter2.20:1

Fluid Capacities

Fluid Capacities specifications
Fuel Tank23.3 gal
Engine Oil3.2 gal
Engine coolant4.5 gal
Hydraulic oil tank15.9 gal

Mast

Mast specifications
Load Capacity6,000 lb
Load Center20 in
Lift Speed0.7 mph
Mast Tip Forward18 °
Mast Tip Rear10 °
Lower Speed1.0 mph
Number of Mast Sections3

Electrical System

Electrical System specifications
Battery120 Ah
Voltage12 V
