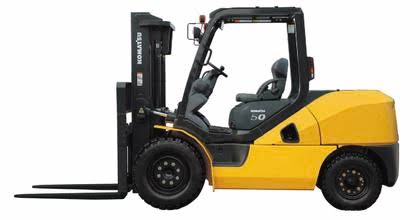

Komatsu FG45T-5 Forklift
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,867 lb
Max Speed11.5 mph
Fuel Capacity18.5 gal
Hydraulic Tank14.6 gal

Engine

Engine specifications
Engine ModelP40
Displacement242 in³
Power Measured @2,100 rpm
Number of Cylinders4
Torque Measured @1,400 rpm
Bore3 in
Stroke5 in
Power80.5 hp
Fuel TypeGasoline
Torque203 lb-ft
Air cleanerCyclone

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase79 in
Overall Width76 in
Turning Radius110 in
Length to Fork Face124 in
Height to Top of Overhead Guard94 in
Right Angle Stack132 in

Mast

Mast specifications
Load Capacity10,000 lb
Load Center24 in
Lift Speed0.8 mph
Mast Tip Forward6 °
Mast Tip Rear12 °
Lower Speed1.0 mph
