Case

695 SR

Backhoe Loader

Max Speed
25.8 mph
All backhoe loaders

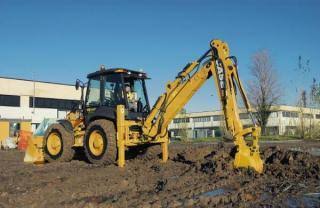

Case 695 SR Backhoe Loader
1 / 5
Image 1 of 5
Image: machineryline.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity35.7 gal
Hydraulic System Fluid Capacity18.5 gal
Tire Size Front - 2wd / 4wd16.9x24 R4 12PR ISG GY
Operating Voltage12 V
Oil System Fluid Capacity3.5 gal
Alternator Supplied Amperage90 A
Turning Radius210 in
Transmission Fluid Capacity4.8 gal
Max Weight19,401 lb
Rear Axle Fluid Capacity2.7 gal
Front Axle Fluid Capacity2.7 gal

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Relief Valve Pressure3,046 psi
Pump TypeGear Pump

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase88 in
Transport Width95 in
Transport Length227 in
Height to Top of Suspended Cab115 in

Transmission

Transmission specifications
Max Speed25.8 mph
Max Speed - Reverse8.7 mph
Number of Forward Gears4
Number of Reverse Gears2
Transmission TypePowershift

Backhoe

Backhoe specifications
Dig Depth182 in
Reach From Swivel233 in
Dig Depth - Extended229 in
Load Height - Extended182 in
Bucket Dig Force8,323 lb
Reach From Swivel - Extended276 in
Reach at Load Height - Extended113 in
Bucket Dig Force - Extended5,827 lb

Loader

Loader specifications
Clearance at Max Dump Height108 in
Bucket Breakout Force1,240,945 lb
Bucket Width95 in
Reach at Max Dump Height30 in
Dig Depth3 in
