Case

721C

Wheel Loader

Operating Weight
29,630 lb
Bucket Capacity - heaped
2.50 yd³
Gross Power
165.0 hp
Net Power
152.0 hp
All wheel loaders

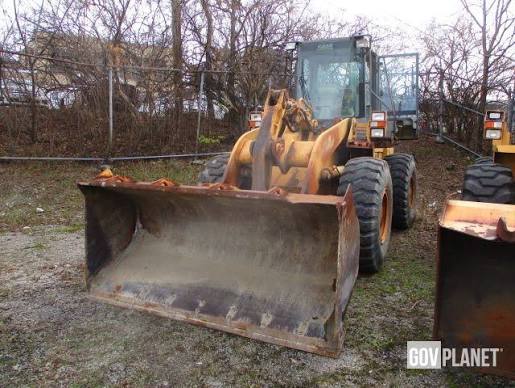

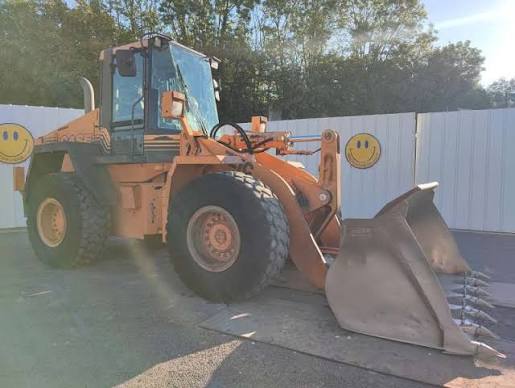

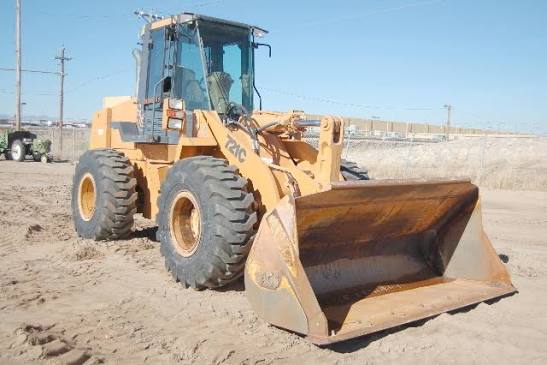

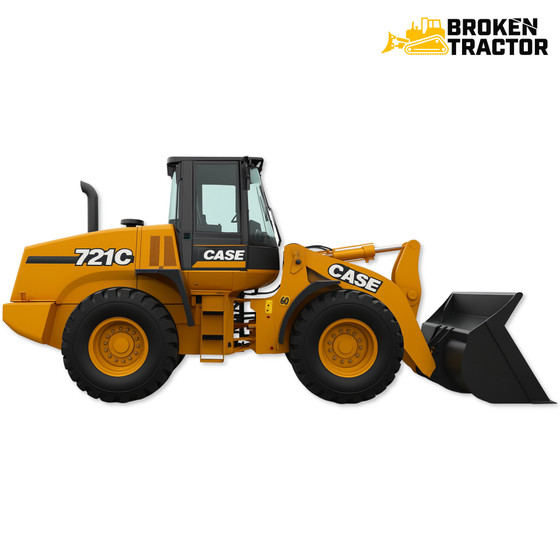

Case 721C Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,630 lb
Fuel Capacity53.9 gal
Tire Size20.5-25 L3
Hydraulic System Fluid Capacity40.5 gal
Static Tipping Weight23,221 lb
Operating Voltage24 V
Turning Radius207 in
Engine Oil Fluid Capacity5.5 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity7.4 gal
Rear Axle/Diff Fluid Capacity5.9 gal
Cooling System Fluid Capacity8.6 gal
Transmission Fluid Capacity3.3 gal

Engine

Engine specifications
Engine Model6T-830
Displacement504 in³
Power Measured @2,200 rpm
Gross Power165.0 hp
Net Power152.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,300 rpm
Torque Rise41.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity18.6 gal/min
Raise Time5.4 s
Lower Time5.1 s
Dump Time1.8 s
Relief Valve Setting2,775 psi
Pump Typedual vane-type tandem

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab128 in
Wheelbase115 in
Width Over Tires101 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground272 in
Hinge Pin - Max Height150 in

Transmission

Transmission specifications
Max Speed - Forward24.2 mph
Max Speed - Reverse17.1 mph
Transmission Type4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.50 yd³
Bucket Capacity - struck2.20 yd³
Dump Clearance at Max Raise119 in
Breakout Force35,005 lb
Bucket Width103 in
