Case
721E
- Operating Weight
- 30,644 lb
- Bucket Capacity - heaped
- 3.51 yd³
- Gross Power
- 182.0 hp
- Net Power
- 172.0 hp
1 / 5

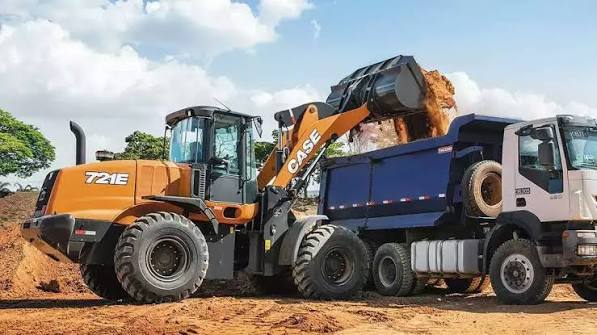

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 30,644 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Tire Size | 20.5 R25 |
| Hydraulic System Fluid Capacity | 51.0 gal |
| Static Tipping Weight | 27,616 lb |
| Operating Voltage | 24 V |
| Turning Radius | 227 in |
| Engine Oil Fluid Capacity | 3.8 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 8.0 gal |
| Rear Axle/Diff Fluid Capacity | 7.3 gal |
| Cooling System Fluid Capacity | 9.8 gal |
| Transmission Fluid Capacity | 6.8 gal |
| Rated Bucket Capacity | 3.51 yd³ |
Engine
| Engine Model | Family IV 667TA/EED Tier III Certified |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 182.0 hp |
| Net Power | 172.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1,300 rpm |
| Make | Case |
| Torque Rise | 31.4 % |
Weights
| Operating Weight | 30,644 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 31.6 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 3.3 s |
| Dump Time | 1.8 s |
| Relief Valve Setting | 3,600 psi |
| Pump Type | closed centered pressure/flow compensated |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 128 in |
| Width Over Tires | 101 in |
| Reach at Max Lift and Dump | 47 in |
| Length with Bucket on Ground | 304 in |
| Hinge Pin - Max Height | 157 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 16.0 mph |
| Transmission Type | 4F/3R Proportional w/Electronic Control Module torque sensing autoshift/manual shift and modulation |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.51 yd³ |
|---|---|
| Bucket Capacity - struck | 3.00 yd³ |
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 29,805 lb |
| Bucket Width | 107 in |
