Case

721E XT

Wheel Loader

Operating Weight
31,827 lb
Bucket Capacity - heaped
3.00 yd³
Gross Power
182.0 hp
Net Power
172.0 hp
All wheel loaders

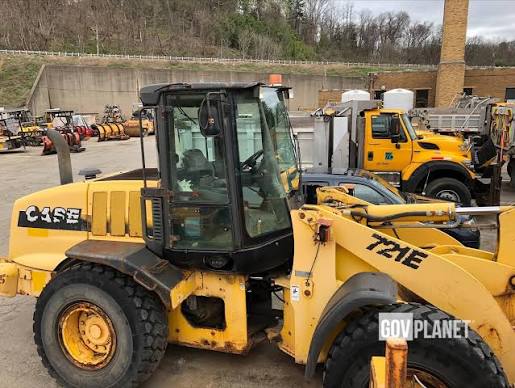

Case 721E XT Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,827 lb
Fuel Capacity65.0 gal
Tire Size20.5 R25
Hydraulic System Fluid Capacity51.0 gal
Static Tipping Weight25,783 lb
Operating Voltage24 V
Turning Radius227 in
Engine Oil Fluid Capacity3.8 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity8.0 gal
Rear Axle/Diff Fluid Capacity7.3 gal
Cooling System Fluid Capacity9.8 gal
Transmission Fluid Capacity6.8 gal
Rated Bucket Capacity3.51 yd³

Engine

Engine specifications
Engine ModelFamily IV 667TA/EED Tier III Certified
Displacement411 in³
Power Measured @1,800 rpm
Gross Power182.0 hp
Net Power172.0 hp
Number of Cylinders6
AspirationTurbocharged with Aftercooler
Torque Measured @1,300 rpm
MakeCase
Torque Rise31.4 %

Weights

Weights specifications
Operating Weight31,827 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity31.6 gal/min
Raise Time5.6 s
Lower Time3.3 s
Dump Time1.9 s
Relief Valve Setting3,600 psi
Pump Typeclosed centered pressure/flow compensated

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab134 in
Wheelbase128 in
Width Over Tires101 in
Reach at Max Lift and Dump48 in
Length with Bucket on Ground307 in
Hinge Pin - Max Height157 in

Transmission

Transmission specifications
Max Speed - Forward23.6 mph
Max Speed - Reverse16.0 mph
Transmission Type4F/3R Proportional w/Electronic Control Module torque sensing autoshift/manual shift and modulation
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.00 yd³
Dump Clearance at Max Raise113 in
Breakout Force28,770 lb
Bucket Width107 in
