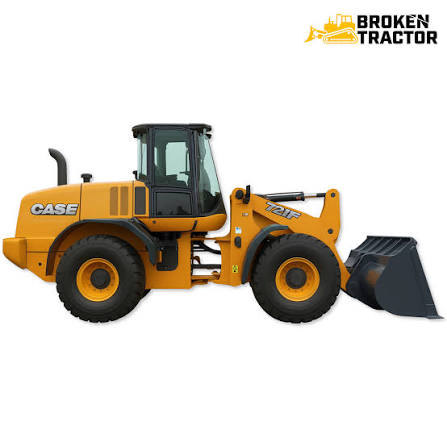

Case
721F
- Operating Weight
- 31,508 lb
- Bucket Capacity - heaped
- 3.30 yd³
- Gross Power
- 194.5 hp
- Net Power
- 178.4 hp
1 / 5
Image 1 of 5
Specifications
63 data points
Operating Specifications
| Operating Weight | 31,508 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Hydraulic System Fluid Capacity | 47.0 gal |
| Static Tipping Weight | 23,371 lb |
| Operating Voltage | 24 V |
| Turning Radius | 227 in |
| Engine Oil Fluid Capacity | 4.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 7.6 gal |
| Transmission Fluid Capacity | 9.0 gal |
| Rated Bucket Capacity | 5.49 yd³ |
Engine
| Engine Model | FPT F4HFE613T |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 194.5 hp |
| Net Power | 178.4 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Make | Case |
| Torque Rise | 37.0 % |
| Alternator | 120 A |
| Emissions level | Tier 4 |
| Engine speed - Rated speed, full load | 2,000 rpm |
| Max. torque ISO14396 | 701 lb-ft |
Weights
| Operating Weight | 31,510 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 31.8 gal/min |
|---|---|
| Raise Time | 5.2 s |
| Lower Time | 2.4 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | Axial Piston Pump |
| Steering pump type | Articulation |
| Maximum system pressure | 3,625 psi |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 128 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 66 in |
| Length with Bucket on Ground | 301 in |
| Hinge Pin - Max Height | 157 in |
| Dump reach @ full height, 45 degrees dump | 44 in |
Transmission
| Max Speed - Forward | 23.5 mph |
|---|---|
| Max Speed - Reverse | 15.9 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Differential lock | F: LSD / R: LSD |
Brakes & Steering
| Service brake | Wet Multi Disc |
|---|
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Bucket Capacity - struck | 2.80 yd³ |
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 31,361 lb |
| Bucket Width | 107 in |
General Specifications
| Operating Weight | 31,508 (14,291) Starting 2016 Model Year |
|---|---|
| Bucket Capacity | 5.5 (4.21) Starting 2016 Model Year |
| Engine type | Case/FPT Starting 2016 Model Year |
| Engine Power | 178 (133) Starting 2016 Model Year |
| Max Dump Height | 9.3 (2.8) Starting 2016 Model Year |
Hydraulic cycle times (unloaded)
| Total cycle time | 8.9 s |
|---|
