Case
721F XT
- Operating Weight
- 32,339 lb
- Bucket Capacity - heaped
- 3.00 yd³
- Gross Power
- 195.0 hp
- Net Power
- 179.0 hp
1 / 5

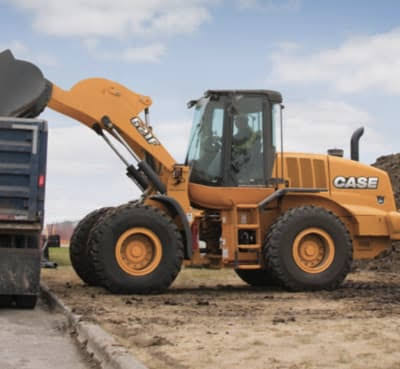

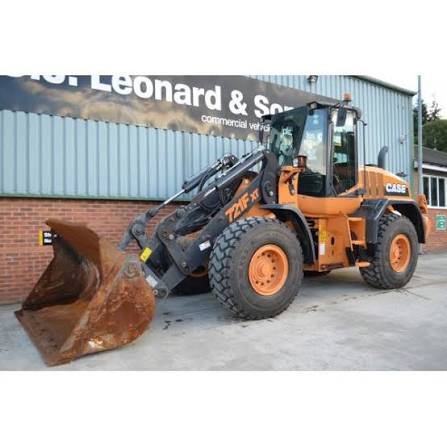

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 32,339 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Hydraulic System Fluid Capacity | 47.0 gal |
| Static Tipping Weight | 22,683 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 4.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 7.6 gal |
| Transmission Fluid Capacity | 9.0 gal |
| Rated Bucket Capacity | 5.49 yd³ |
Engine
| Engine Model | F4HFE613Y |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 195.0 hp |
| Net Power | 179.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Make | Case |
| Torque Rise | 37.0 % |
Weights
| Operating Weight | 32,566 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 54.5 gal/min |
|---|---|
| Raise Time | 5.2 s |
| Lower Time | 2.4 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,625 psi |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 128 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 50 in |
| Length with Bucket on Ground | 313 in |
| Hinge Pin - Max Height | 165 in |
Transmission
| Max Speed - Forward | 23.5 mph |
|---|---|
| Max Speed - Reverse | 15.9 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 115 in |
| Bucket Width | 107 in |
