Case

780

Backhoe Loader

Bucket Capacity
1.50 yd³
Max Speed
17.4 mph
Gross Power
120.0 hp
Net Power
111.0 hp
All backhoe loaders

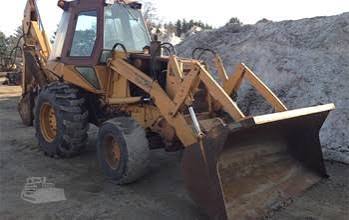

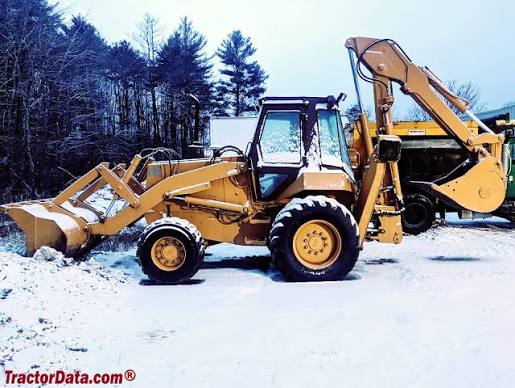

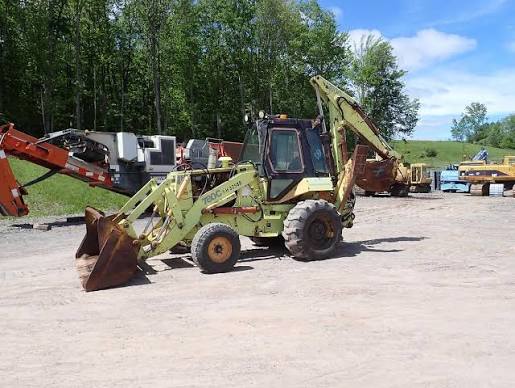

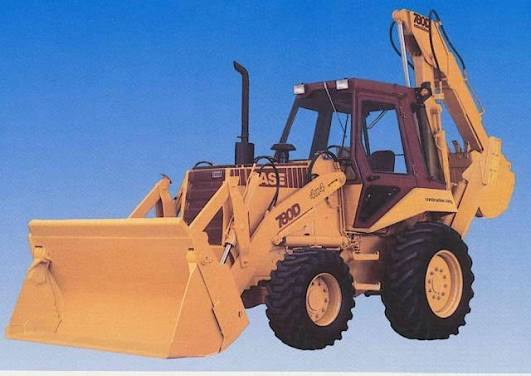

Case 780 Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity35.0 gal
Cooling System Fluid Capacity6.5 gal
Tire Size Front - 2wd / 4wd9.00 * 20 10PR
Operating Voltage24 V
Oil System Fluid Capacity2.5 gal
Alternator Supplied Amperage95 A
Transmission Fluid Capacity5.0 gal
Max Weight17,000 lb
Rear Axle Fluid Capacity4.0 gal

Engine

Engine specifications
Engine ModelA336 BDT
Displacement336 in³
Power Measured @2,200 rpm
Gross Power120.0 hp
Net Power111.0 hp
Number of Cylinders4
Torque Measured @2,200 rpm
Engine MakeCase
Stroke5 in
Bore5 in
Net Max Torque285 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.0 gal/min
Relief Valve Pressure2,050 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase88 in
Transport Width96 in
Transport Length295 in

Transmission

Transmission specifications
Max Speed17.4 mph
Max Speed - Reverse17.4 mph
Number of Forward Gears2
Number of Reverse Gears2
Transmission TypeFull powershift

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4 * 24 12PR R4

Backhoe

Backhoe specifications
Dig Depth221 in
Reach From Swivel271 in
Bucket Dig Force13,332 lb

Loader

Loader specifications
Bucket Capacity1.50 yd³
Clearance at Max Dump Height107 in
Bucket Breakout Force16,000 lb
Bucket Width95 in
Reach at Max Dump Height69 in
