Case

780D

Backhoe Loader

Max Speed
19.5 mph
Gross Power
124.0 hp
Net Power
112.0 hp
All backhoe loaders

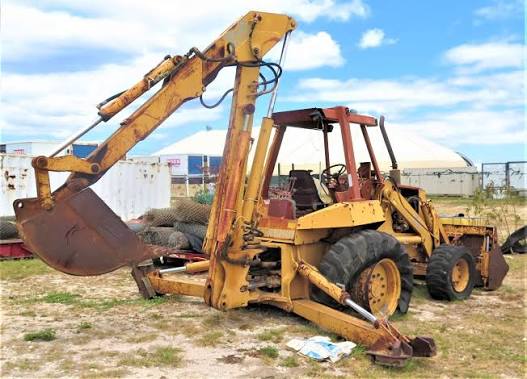

Case 780D Backhoe Loader
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity43.0 gal
Hydraulic System Fluid Capacity14.2 gal
Cooling System Fluid Capacity6.8 gal
Tire Size Front - 2wd / 4wd14.00x17.5
Operating Voltage12 V
Oil System Fluid Capacity3.1 gal
Alternator Supplied Amperage65 A
Max Weight23,264 lb
Axle load - front22,250 lb

Engine

Engine specifications
Engine Model6T-590
Displacement360 in³
Power Measured @2,200 rpm
Gross Power124.0 hp
Net Power112.0 hp
Number of Cylinders6
Torque Measured @1,200 rpm
Engine MakeJ.I. Case
Stroke5 in
Bore4 in
Net Max Torque370 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity31.5 gal/min
Relief Valve Pressure1,750 psi
Pump TypeOpen center

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase88 in
Transport Width97 in
Transport Length296 in
Height to Top of Suspended Cab117 in
Rear Tread Range71 in
Front Tread Range78 in

Transmission

Transmission specifications
Max Speed19.5 mph
Max Speed - Reverse7.5 mph
Number of Forward Gears3
Number of Reverse Gears2
Transmission TypePower shift

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size21Lx24

Backhoe

Backhoe specifications
Dig Depth217 in
Reach From Swivel264 in
Dig Depth - Extended264 in
Load Height - Extended174 in
Bucket Dig Force13,640 lb
Reach From Swivel - Extended306 in
Load Height152 in
Bucket Dig Force - Extended13,742 lb

Loader

Loader specifications
Clearance at Max Dump Height107 in
Bucket Breakout Force12,300 lb
Bucket Width96 in
Reach at Max Dump Height36 in
