Case

921C XR

Wheel Loader

Operating Weight
24,250 lb
Bucket Capacity - heaped
470.89 yd³
Gross Power
290.0 hp
Net Power
271.0 hp
All wheel loaders

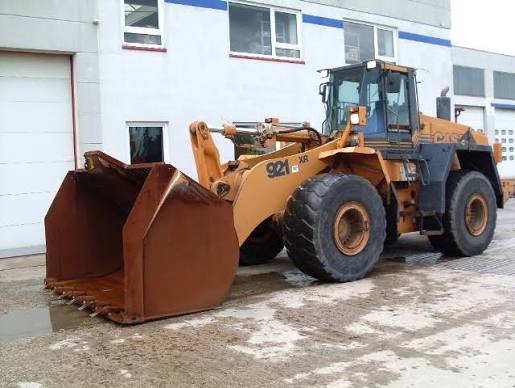

Case 921C XR Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,250 lb
Fuel Capacity104.1 gal
Tire Size26.5 R 25
Hydraulic System Fluid Capacity64.0 gal
Operating Voltage24 V
Engine Oil Fluid Capacity9.8 gal
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity12.5 gal
Rear Axle/Diff Fluid Capacity14.1 gal
Cooling System Fluid Capacity15.1 gal

Engine

Engine specifications
Engine ModelQSM11-C
Displacement659 in³
Gross Power290.0 hp
Net Power271.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.1 gal/min
Raise Time6.2 s
Lower Time3.7 s
Dump Time1.5 s
Relief Valve Setting2,843 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab141 in
Wheelbase134 in
Reach at Max Lift and Dump89 in
Length with Bucket on Ground361 in
Hinge Pin - Max Height191 in

Transmission

Transmission specifications
Max Speed - Forward24.2 mph
Max Speed - Reverse16.6 mph
Transmission TypePowershift Gearbox
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped470.89 yd³
Bucket Capacity - struck392.39 yd³
Dump Clearance at Max Raise144 in
Breakout Force22,020 lb
Bucket Width119 in
