Case
BOMAG
CR 662 RM
Asphalt Paver
37 specifications
Case

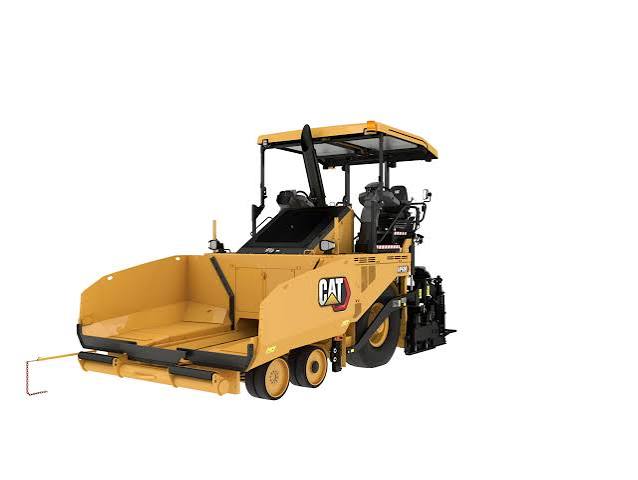

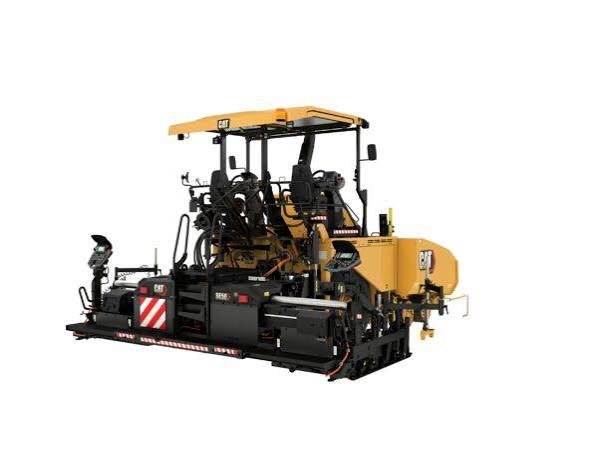

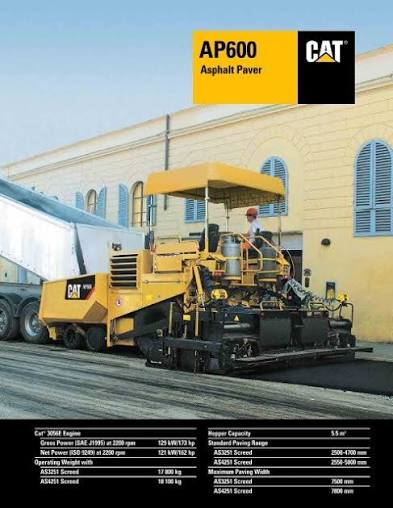

AP600
- Operating Weight w/ Screed
- 39,904 lb
- Paving Width - max
- 186 in
- Gross Power
- 173.0 hp
- Length w/ Screed
- 252 in
1 / 5
Image 1 of 5
Specifications
16 data points
Operating Specifications
| Operating Weight w/ Screed | 39,904 lb |
|---|---|
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
| Paving Width Minimum | 98 in |
Engine
| Engine Model | Cat 3056E |
|---|---|
| Displacement | 366 in³ |
| Gross Power | 173.0 hp |
| Net Power | 162.0 hp |
Weights
| Tractor Weight | 31,195 lb |
|---|
Dimensions
| Transport Width | 100 in |
|---|---|
| Transport Height | 146 in |
| Track Width | 126 in |
| Length w/ Screed | 252 in |
| Width w/ Hopper Open | 72 in |
Hopper/Paver
| Paving Width - max | 186 in |
|---|---|
| Travel Speed - max | 9.4 mph |
