Case
BOMAG
CR 662 RM
Asphalt Paver
37 specifications

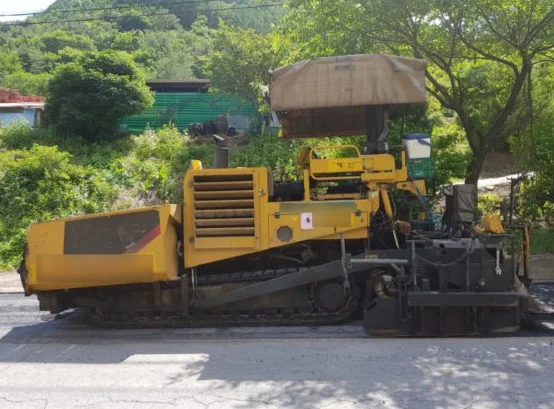

Case
AP755
- Operating Weight w/ Screed
- 46,077 lb
- Paving Width - max
- 186 in
- Gross Power
- 202.0 hp
- Length w/ Screed
- 257 in
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight w/ Screed | 46,077 lb |
|---|---|
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Paving Width Minimum | 98 in |
| Paving Width Maximum | 359 in |
Engine
| Engine Model | ACERT C7 |
|---|---|
| Displacement | 439 in³ |
| Gross Power | 202.0 hp |
| Net Power | 188.0 hp |
Weights
| Operating Weight - With Extend-A-Mat 8-16B Screed | 52,691 lb |
|---|---|
| Operating Weight - With Screed | 52,691 lb |
| Tractor Weight | 38,052 lb |
Dimensions
| Transport Width | 100 in |
|---|---|
| Transport Height | 150 in |
| Track Width | 99 in |
| Length w/ Screed | 257 in |
| Length - With Push Roller and Extend-a-Mat B Screed | 257 in |
| Track Contact Length | 120 in |
| Transport Height - Muffler Removed | 119 in |
Drive System
| Maximum Paving Speed | 1.0 mph |
|---|---|
| Maximum Travel Speed | 3.8 mph |
Hopper
| Hopper Capacity | 2,967 in |
|---|
Hopper/Paver
| Paving Width - max | 186 in |
|---|
Service Refill Capacities
| Hydraulic Oil Tank | 52.9 gal |
|---|---|
| Fuel Tank Capacity | 78.0 gal |
| Cooling System | 14.3 gal |
Comparable machines
Other asphalt pavers in a similar weight class.
