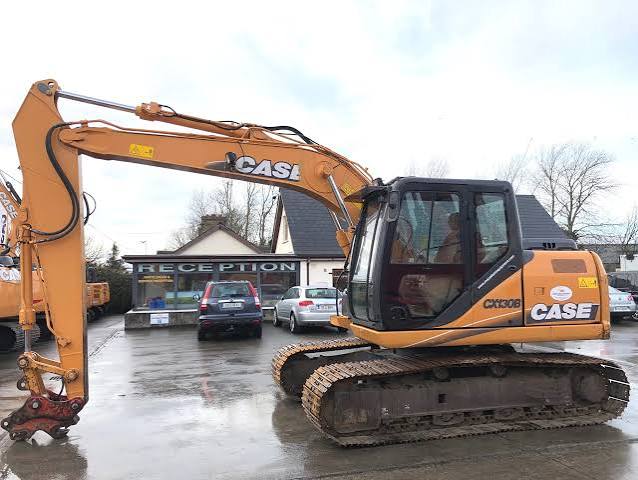

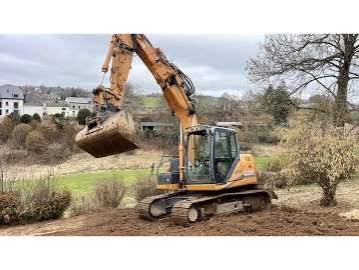

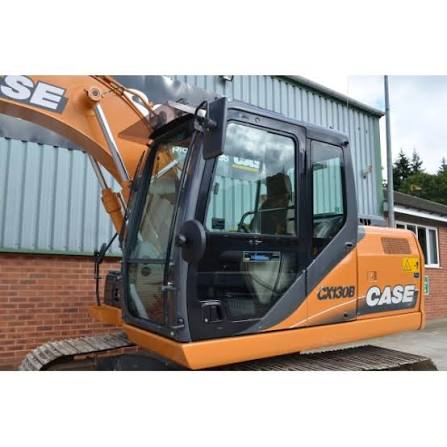

Case
CX130B LC
- Operating Weight
- 28,400 lb
- Max Digging Depth
- 239 in
- Max Digging Depth
- 219 in
- Net Power
- 95.3 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 28,400 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Hydraulic Pump Flow Capacity | 68.2 gal/min |
| Hydraulic System Fluid Capacity | 41.5 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.6 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 4JJ1X Tier III certified |
|---|---|
| Displacement | 183 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 95.3 hp |
| Aspiration | Turbocharged and aftercooled |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 265 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 110 in |
| Length of Track on Ground | 120 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 25,853 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 239 in |
|---|---|
| Max Reach Along Ground | 341 in |
| Max Loading Height | 264 in |
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 356 in |
| Shipping Length of Unit | 301 in |
| Shipping Height of Unit | 111 in |
Bucket
| Maximum Bucket Capacity | 0.99 yd³ |
|---|---|
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 219 in |
|---|---|
| Max Vertical Wall Digging Depth | 196 in |
| Max Cutting Height | 346 in |
| Max Loading Height | 252 in |
| Max Reach Along Ground | 323 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 111 in |
