Case
Hitachi
EX135USR
Excavator
23 specifications
1 / 5

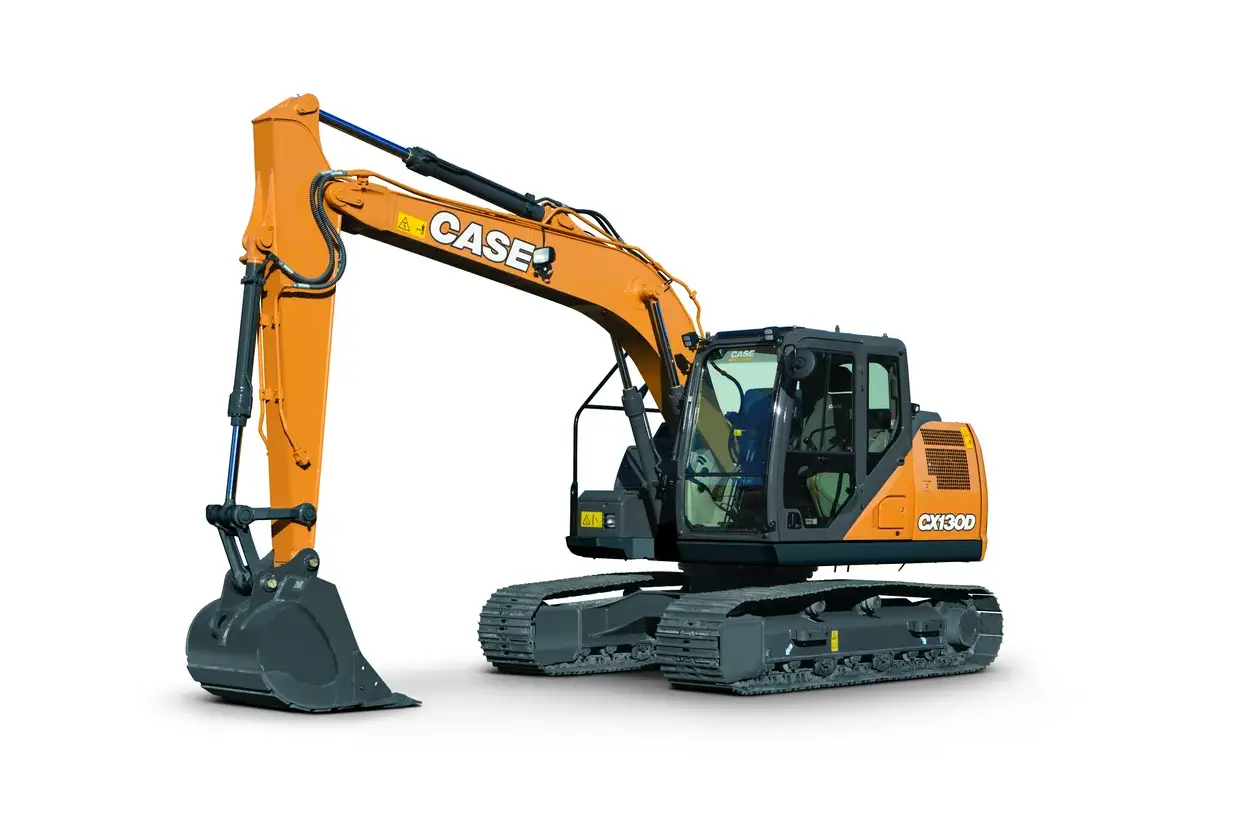

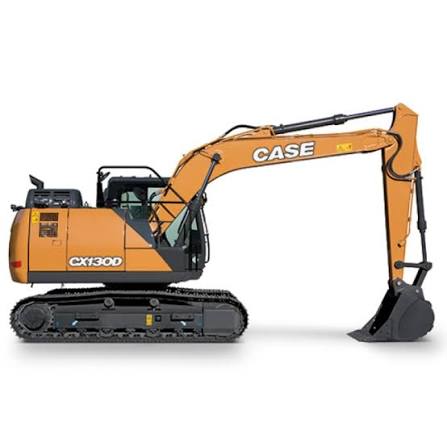

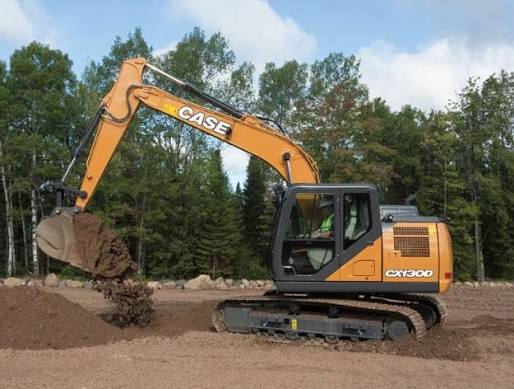

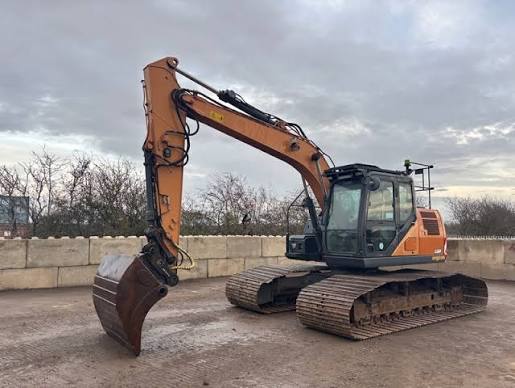

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 30,424 lb |
|---|---|
| Arm Breakout Force | 14,837 lb |
| Arm size | 98 in |
Engine
| Engine Model | Isuzu 4 JJ 1X |
|---|---|
| Power Measured @ | 2,000 rpm |
| Net Power | 102.0 hp |
| Max Torque | 257 lb-ft |
| Engine Make | Isuzu |
| Emission Tier Level | Tier 4 |
Hydraulic System
| Main pump - Maximum flow | 68.2 gal |
|---|---|
| System relief pressure | 5 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Tail Swing Radius | 86 in |
| Overall Height | 109 in |
| Track Shoe Width | 24 in |
| Cab height | 9 in |
| Track length | 138 in |
| Center to center - idler to sprocket | 110 in |
| Ground pressure | 5 psi |
| Boom length | 182 in |
| Minimum ground clearance | 2 in |
Transmission
| Max Speed | 3.5 mph |
|---|
Undercarriage
| Track Shoe Width | 24 in |
|---|
Boom/Stick Excavator Option 1
| Max Digging Depth | 220 in |
|---|---|
| Max Reach Along Ground | 313 in |
| Max Vertical Wall Digging Depth | 196 in |
| Minimum swing radius | 92 in |
| Bucket rotation | 178 ° |
| Mximum dig radius | 327 in |
| Dig radius at ground line | 322 in |
| Dump height | 252 in |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Minimum swing radius | 105 in |
|---|---|
| Dig radius at ground line | 340 in |
| Dump height | 263 in |
| Maximum dig radius | 345 in |
| Maximum reach height | 364 in |
Boom/Stick Excavator Option 3
| Minimum swing radius | 93 in |
|---|---|
| Overall height | 109 in |
| Maximum dig radius | 313 in |
| Dig radius at ground line | 308 in |
| Dump height | 243 in |
| Maximum reach height | 337 in |
Performance
| Lift over end Max. reach | 3,001 lb |
|---|---|
| Lift over side Max. reach | 2,701 lb |
| Lift over end 10' radius | 18,451 lb |
| Lift over side 10' radius | 11,700 lb |
