Case

CX135

Excavator

Operating Weight
29,631 lb
Max Digging Depth
234 in
Max Digging Depth
216 in
Net Power
95.0 hp
All excavators

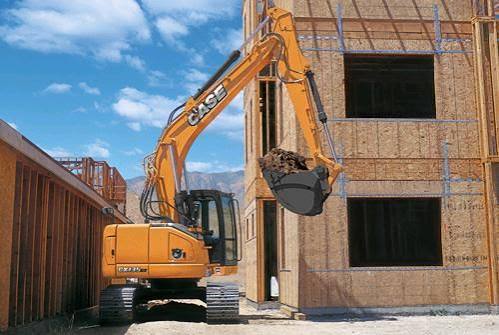

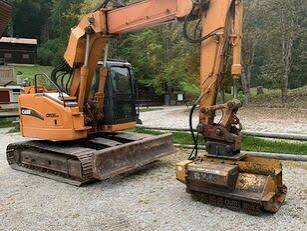

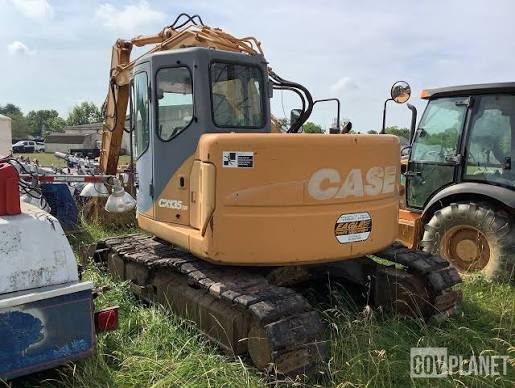

Case CX135 Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,631 lb
Fuel Capacity44.0 gal
Hydraulic Pump Flow Capacity31.0 gal/min
Hydraulic System Fluid Capacity34.0 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity4.6 gal
Cooling System Fluid Capacity3.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.8 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAJ-4JJ1X Tier III certified
Displacement183 in³
Power Measured @2,000 rpm
Net Power95.0 hp
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque265 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Length of Track on Ground110 in
Tail Swing Radius59 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side6
Max Travel Speed3.1 mph
Shoe Size24 in
Number of Shoes per Side43
Number of Carrier Rollers per Side1
Drawbar Pull25,853 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth234 in
Max Reach Along Ground332 in
Max Loading Height282 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height376 in
Shipping Length of Unit285 in
Shipping Height of Unit109 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth216 in
Max Vertical Wall Digging Depth192 in
Max Cutting Height366 in
Max Loading Height272 in
Max Reach Along Ground318 in
Shipping Length of Unit285 in
Shipping Height of Unit109 in

Comparable machines

Other excavators in a similar weight class.
