Case

CX14

Mini Excavator

Operating Weight
3,240 lb
Max Digging Depth
84 in
Net Power
11.9 hp
All mini excavators

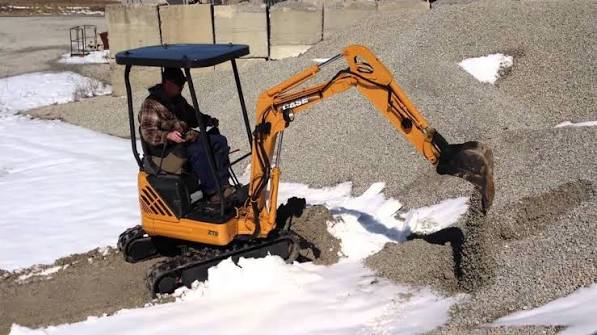

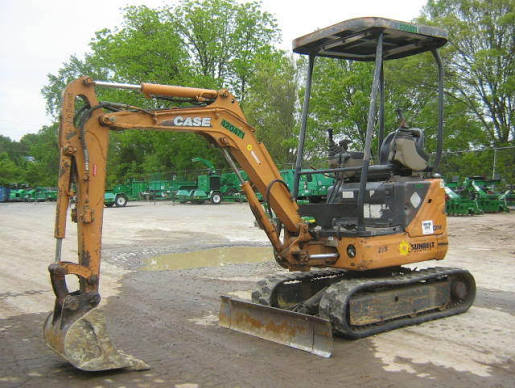

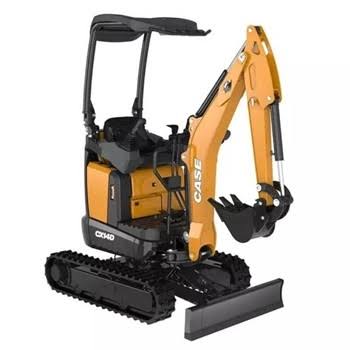

Case CX14 Mini Excavator
1 / 5
Image 1 of 5
Image: casece.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,240 lb
Fuel Capacity4.0 gal
Hydraulic Pump Flow Capacity7.8 gal/min
Hydraulic System Fluid Capacity4.5 gal
Hydraulic System Relief Valve Pressure2,988 psi
Operating Voltage12 V
Alternator Supplied Amperage20 A
Engine Oil Capacity0.9 gal
Cooling System Fluid Capacity0.7 gal

Engine

Engine specifications
Engine Model3TNE68
Displacement48 in³
Power Measured @2,000 rpm
Net Power11.9 hp
Number of Cylinders3
Torque Measured @1,500 rpm
Max Torque34 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab88 in
Length of Track on Ground48 in
Tail Swing Radius24 in
Width to Outside of Tracks48 in
Removal Counterweight Clearance18 in
Digging Depth72 in
Digging Reach72 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Number of Track Rollers per Side3
Max Travel Speed2.3 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth84 in
Max Reach Along Ground145 in
Max Vertical Wall Digging Depth73 in
Max Loading Height101 in
Shipping Length of Unit132 in
Max Cutting Height144 in
Shipping Height of Unit88 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
