Case

CX17B

Mini Excavator

Operating Weight
3,638 lb
Max Digging Depth
85 in
Net Power
15.2 hp
All mini excavators

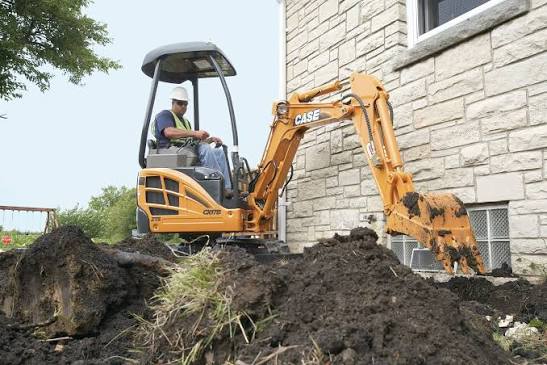

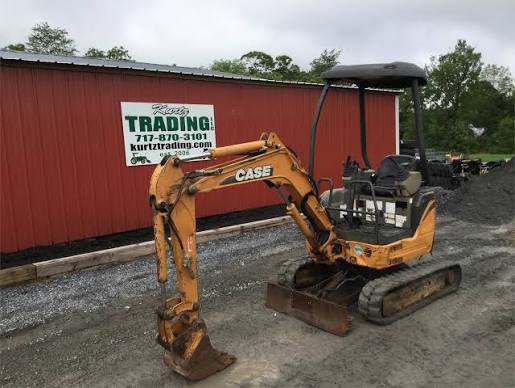

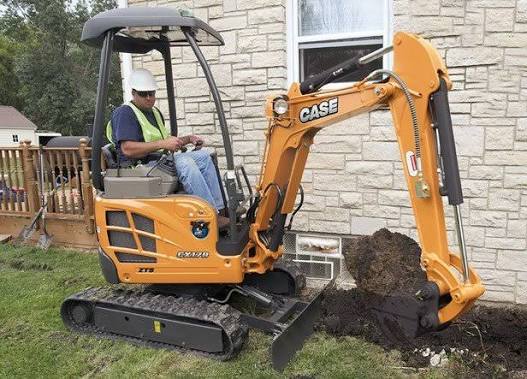

Case CX17B Mini Excavator
1 / 5
Image 1 of 5
Image: miniexcavatorthumbs.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,638 lb
Fuel Capacity5.8 gal
Hydraulic Pump Flow Capacity8.6 gal/min
Hydraulic System Fluid Capacity4.0 gal
Hydraulic System Relief Valve Pressure3,133 psi
Operating Voltage12 V
Alternator Supplied Amperage20 A
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity1.0 gal

Engine

Engine specifications
Engine ModelL3E-W231KBS
Displacement58 in³
Power Measured @2,200 rpm
Net Power15.2 hp
Number of Cylinders3
Torque Measured @1,800 rpm
Max Torque39 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab94 in
Length of Track on Ground48 in
Tail Swing Radius25 in
Width to Outside of Tracks53 in
Removal Counterweight Clearance18 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side3
Max Travel Speed2.5 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth85 in
Max Reach Along Ground150 in
Max Vertical Wall Digging Depth66 in
Max Loading Height104 in
Shipping Length of Unit135 in
Max Cutting Height145 in
Shipping Height of Unit94 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
