Case
Caterpillar
302.5C
Mini Excavator
89 specifications
1 / 5

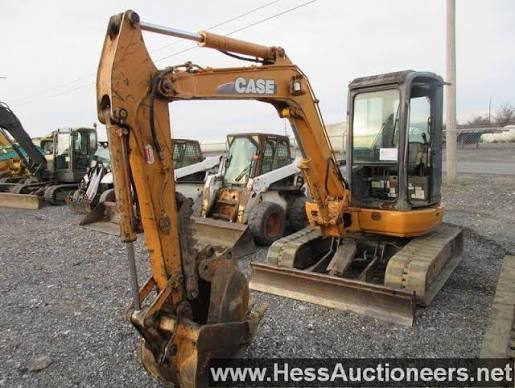

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 10,428 lb |
|---|---|
| Fuel Capacity | 13.2 gal |
| Hydraulic Pump Flow Capacity | 27.7 gal/min |
| Hydraulic System Fluid Capacity | 16.7 gal |
| Hydraulic System Relief Valve Pressure | 3,277 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Capacity | 1.6 gal |
| Cooling System Fluid Capacity | 1.3 gal |
Engine
| Engine Model | 4TNE88 |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 36.5 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 108 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 103 in |
| Tail Swing Radius | 40 in |
| Width to Outside of Tracks | 78 in |
| Removal Counterweight Clearance | 25 in |
| Digging Depth | 132 in |
| Digging Reach | 132 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Number of Track Rollers per Side | 4 |
| Max Travel Speed | 2.9 mph |
| Shoe Size | 16 in |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 143 in |
|---|---|
| Max Reach Along Ground | 226 in |
| Max Vertical Wall Digging Depth | 107 in |
| Max Loading Height | 145 in |
| Shipping Length of Unit | 209 in |
| Max Cutting Height | 205 in |
| Shipping Height of Unit | 103 in |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.41 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
