Case

CX50B

Mini Excavator

Operating Weight
10,261 lb
Max Digging Depth
142 in
Net Power
39.8 hp
All mini excavators

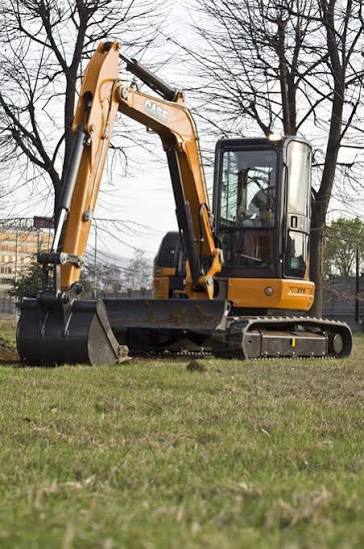

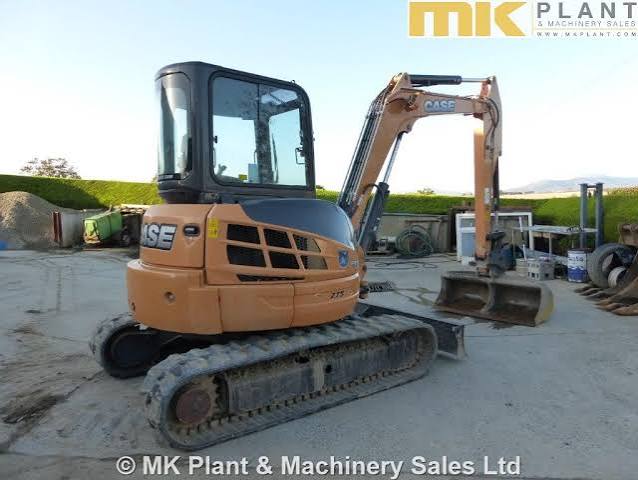

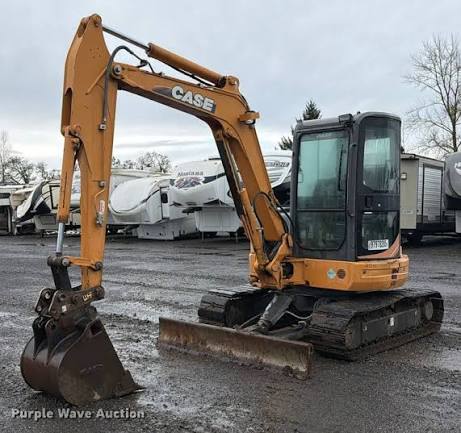

Case CX50B Mini Excavator
1 / 5
Image 1 of 5
Image: cjleonard.co.uk

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,261 lb
Fuel Capacity14.0 gal
Hydraulic Pump Flow Capacity30.0 gal/min
Hydraulic System Fluid Capacity17.0 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.0 gal
Cooling System Fluid Capacity1.6 gal

Engine

Engine specifications
Engine Model4TNV88-BXYB
Displacement134 in³
Power Measured @2,400 rpm
Net Power39.8 hp
Number of Cylinders4
Torque Measured @1,440 rpm
Max Torque103 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab102 in
Tail Swing Radius39 in
Width to Outside of Tracks78 in
Removal Counterweight Clearance25 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side5
Max Travel Speed2.9 mph
Shoe Size16 in
Number of Carrier Rollers per Side1
Drawbar Pull12,170 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth142 in
Max Reach Along Ground227 in
Max Vertical Wall Digging Depth111 in
Max Loading Height162 in
Shipping Length of Unit205 in
Max Cutting Height223 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
