Case

CX80

Excavator

Operating Weight
18,298 lb
Max Digging Depth
166 in
Max Digging Depth
182 in
Net Power
52.5 hp
All excavators

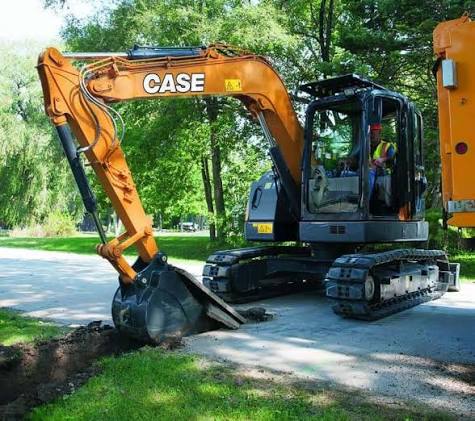

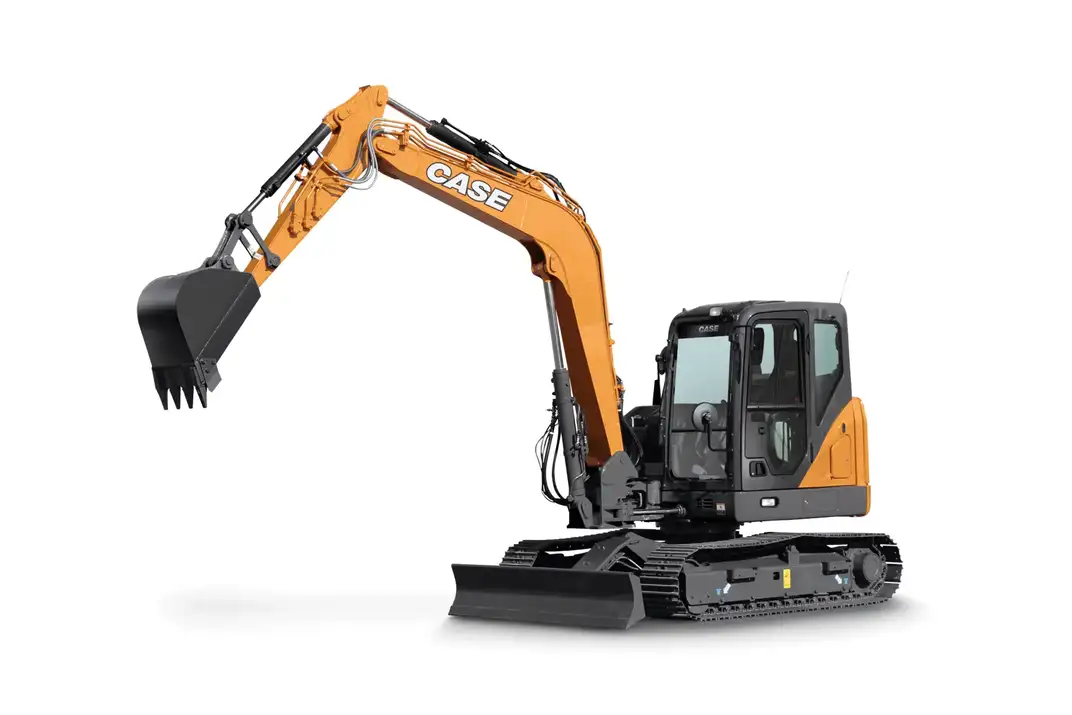

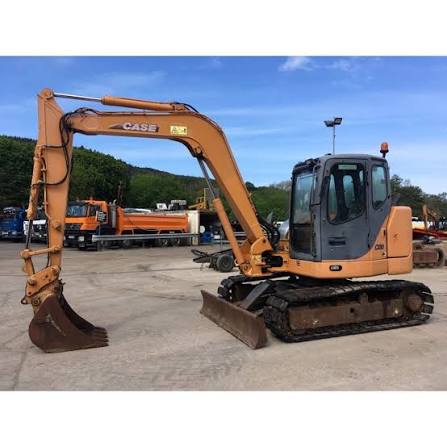

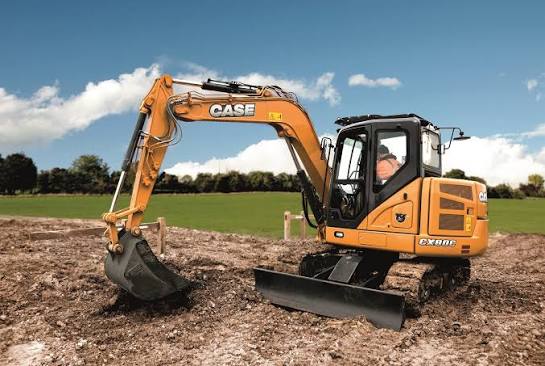

Case CX80 Excavator
1 / 5
Image 1 of 5
Image: casece.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,298 lb
Hydraulic Pump Flow Capacity37.8 gal/min
Hydraulic System Relief Valve Pressure4,264 psi

Engine

Engine specifications
Engine ModelCC-4JG1
Displacement189 in³
Power Measured @2,100 rpm
Net Power52.5 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab107 in
Tail Swing Radius65 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge74 in
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth166 in
Max Reach Along Ground272 in
Max Loading Height173 in
Max Vertical Wall Digging Depth122 in
Max Cutting Height251 in
Shipping Length of Unit261 in
Shipping Height of Unit107 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth182 in
Max Vertical Wall Digging Depth142 in
Max Cutting Height259 in
Max Loading Height181 in
Max Reach Along Ground287 in
Shipping Length of Unit265 in
Shipping Height of Unit107 in
