Case

SR130

Skid Steer Loader

Operating Weight
5,000 lb
Bucket Capacity
0.50 yd³
Gross Power
43.0 hp
All skid steer loaders

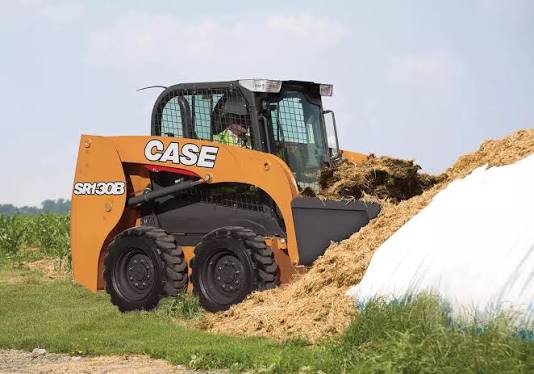

Case SR130 Skid Steer Loader
1 / 5
Image 1 of 5
Image: motorbazee.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,000 lb
Fuel Capacity16.0 gal
Hydraulic System Fluid Capacity4.0 gal
Tire Size10 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage120 A
Engine Oil Fluid Capacity2.0 gal
Chain Box Fluid Capacity - each side1.7 gal
Operating Speed6.7 mph

Engine

Engine specifications
Engine ModelISM N844T/M3
Displacement122 in³
Power Measured @2,900 rpm
Gross Power43.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,750 rpm
Max Torque96 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.6 gal/min
Relief Valve Pressure3,000 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab76 in
Wheelbase37 in
Width Over Tires60 in
Reach at Max Lift and Dump19 in
Length with Bucket120 in
Clearance at Max Lift and Dump89 in
Turning Radius from Center - inc bucket76 in
Turning Radius from Center - machine rear56 in
Length w/o Bucket97 in

General Specifications

General Specifications specifications
Engine Power HP (KW)49 (36.4) Starting 2019 Model Year
Operating Width IN. (CM)59.8 (151.89) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)1,300 (590) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%1,300 (590) Starting 2020 Model Year

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,300 lb
Tipping Angle2,600 °
Operating Width60 in
Bucket Width60 in
