Case
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5

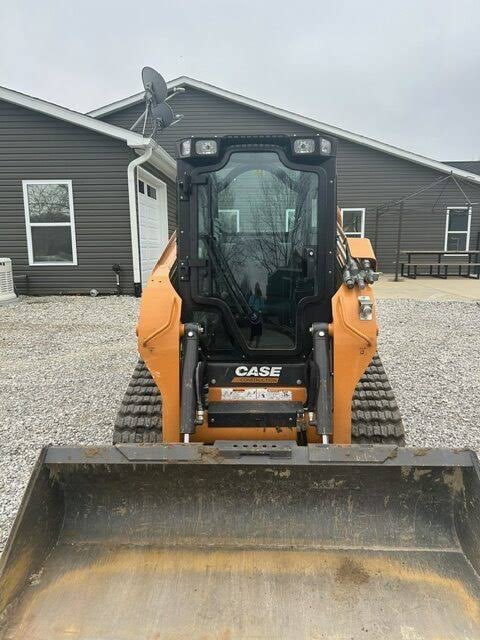

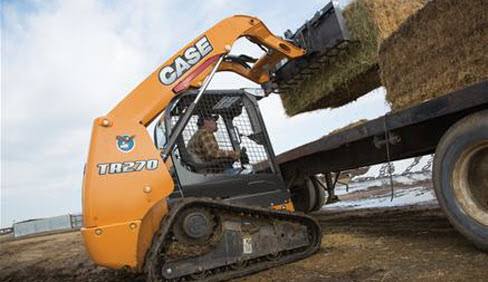

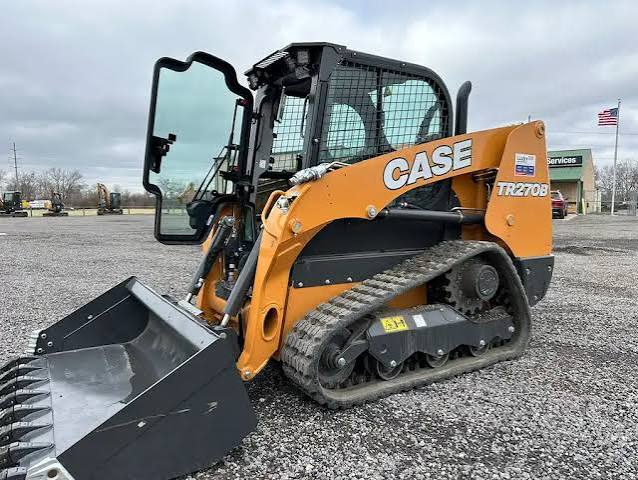

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 8,270 lb |
|---|---|
| Lift Configuration | Radial |
Engine
| Engine Model | FPT F5HFL463 A*F001 |
|---|---|
| Displacement | 208 in³ |
| Gross Power | 74.0 hp |
| Net Power | 68.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbo |
| Emission Tier Level | Tier 4 |
| Peak Torque | 232 lb-ft |
| Emissions compliance | Tier 4 Final Certified (CEGR DOC PM Catalyst) |
Weights
| Operating Weight | 8,267 lb |
|---|
Hydraulic System
| Pump Flow | 24.2 gal/min |
|---|---|
| Pump Type | Gear |
| Main Relief Pressure | 3,050 psi |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 79 in |
| Width Over Tracks | 67 in |
| Height - Top of ROPS/FOPS | 79 in |
| Track Width | 12,599 in |
| Height to Hinge Pin | 123 in |
| Overall Length with Foundry/ Excavating Bucket | 130 in |
| Dump Height with Foundry/ Excavating Bucket | 98 in |
Fluid Capacities
| Fuel Tank | 19.5 gal |
|---|---|
| Engine oil with filter | 2.5 gal |
Bucket
| Bucket Width | 73 in |
|---|---|
| Breakout Force | 7,261 lb |
General Specifications
| Operating Width IN. (CM) | 65.9 (1.68) Starting 2019 Model Year |
|---|---|
| Engine Power HP (KW) | 74 (55) Starting 2019 Model Year |
| OPERATING LOAD LBS. (KG) | 1,890 (860) Starting 2019 Model Year |
| RATED OPERATING CAPACITY LBS. (35%) | 1,890 (860) Starting 2020 Model Year |
Loader
| Tipping Angle | 5,400 ° |
|---|---|
| Operating Load | 2,700 lb |
| Breakout Force | — |
| Operating Width | 66 in |
| Operating Load Rating | 1,890 lb |
| High flow pump output | 32.4 gal/min |
| Standard hydraulic pump output | 24.2 gal/min |
| Rollback - Ground Level | 31 ° |
| Bucket Rollback at Max Height | 99 ° |
| Dump Clearance at Full Height Discharge | 99 in |
| Dump Reach | 26 in |
| Linkage Geometry | Radial |
| Straight Tipping Load | 5,399 lb |
| Loader | Joystick |
