Case
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5

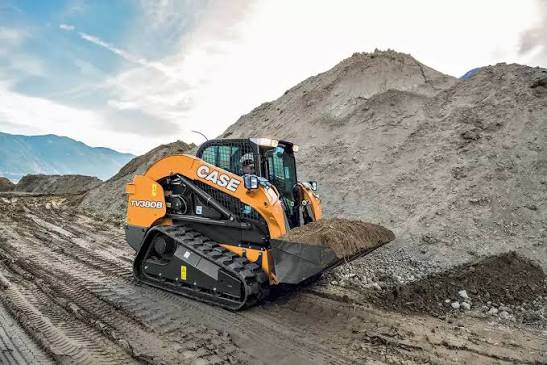

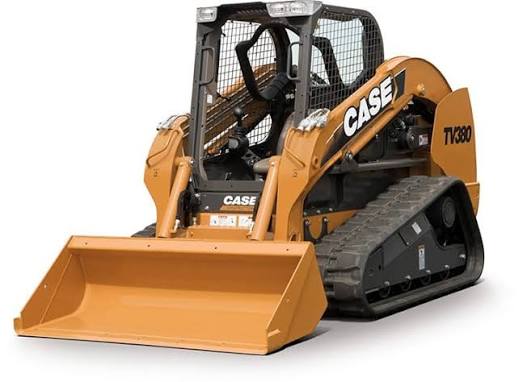

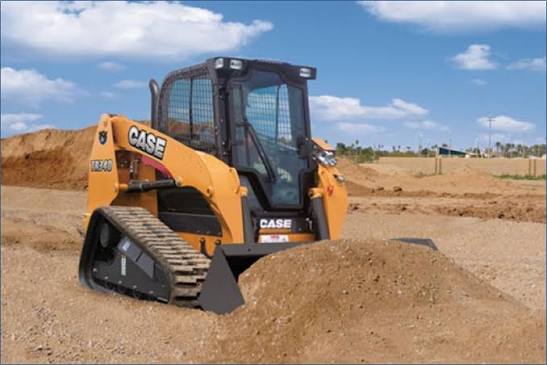

Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 10,000 lb |
|---|---|
| Lift Configuration | Vertical |
Engine
| Engine Model | FPT F5B FL413 E B002 |
|---|---|
| Displacement | 207 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 90.0 hp |
| Net Power | 84.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbo |
| Stroke | 4 in |
| Bore | 4 in |
| Alternator | 160 A |
| Battery | 12-volt low-maintenance |
| Peak Torque | 282 lb-ft |
| Starter | 4.3 hp |
| Radiator Core type | Aluminum bar and plate |
| Emissions compliance | Tier 4 Final Certified (CEGR DOC SCR) |
Hydraulic System
| Pump Flow | 24.2 gal/min |
|---|---|
| Pump Type | Gear |
| Main Relief Pressure | 31 psi |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 80 in |
| Width Over Tracks | 77 in |
| Height - Top of ROPS/FOPS | 80 in |
| Length with Bucket | 143 in |
| Track Width | 76 in |
| Track Gauge | 1 in |
| Height to Hinge Pin | 132 in |
| Overall Length with Foundry/ Excavating Bucket | 142 in |
| Dump Height with Foundry/ Excavating Bucket | 105 in |
Fluid Capacities
| Fuel Tank | 25.5 gal |
|---|---|
| Engine oil with filter | 2.3 gal |
Bucket
| Bucket Width | 78 in |
|---|---|
| Breakout Force | 8,768 lb |
General Specifications
| Operating Width IN. (CM) | 76.0 (1.93) Starting 2019 Model Year |
|---|---|
| Engine Power HP (KW) | 90 (67) Starting 2019 Model Year |
| OPERATING LOAD LBS. (KG) | 2,660 (1,209) Starting 2019 Model Year |
| RATED OPERATING CAPACITY LBS. (35%) | 2,660 (1,209) Starting 2020 Model Year |
Loader
| Tipping Angle | 7,600 ° |
|---|---|
| Operating Load | 3,800 lb |
| Breakout Force | — |
| Operating Width | 76 in |
| Operating Load Rating | 2,660 lb |
| High flow pump output | 37.6 gal/min |
| Standard hydraulic pump output | 24.2 gal/min |
| Rollback - Ground Level | 34 ° |
| Bucket Rollback at Max Height | 86 ° |
| Dump Clearance at Full Height Discharge | 105 in |
| Dump Reach | 32 in |
| Linkage Geometry | Vertical |
| Straight Tipping Load | 7,599 lb |
