Caterpillar

140G

Motor Grader

Max Power
150.0 hp
Net Power Gear 5-6
150.0 hp
All motor graders

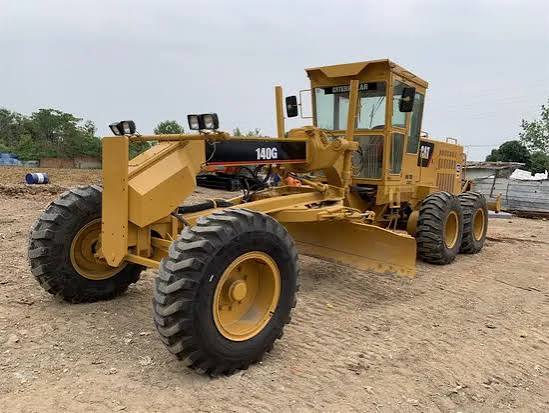

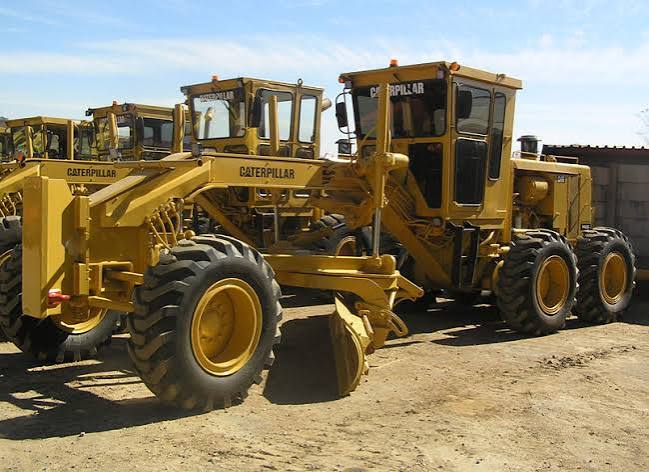

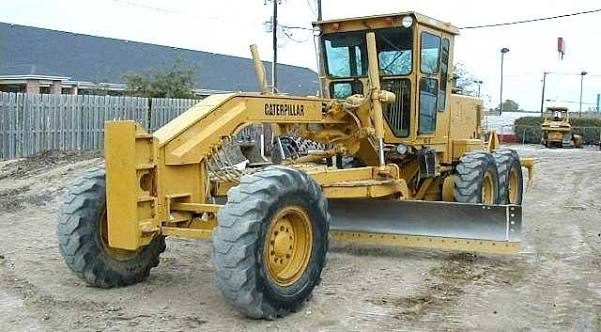

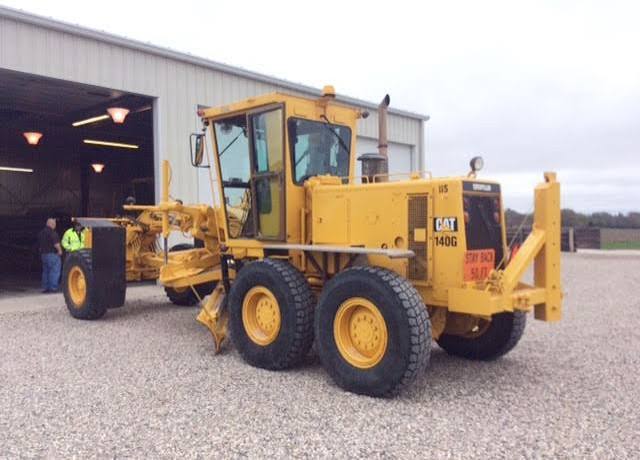

Caterpillar 140G Motor Grader
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total27,822 lb
Tire Size14x24 10PR
Fuel Capacity75.1 gal
Hydraulic System Fluid Capacity18.0 gal
Operating Voltage24 V
Cooling System Fluid Capacity12.5 gal
Alternator Supplied Amperage40 A
Oil System Fluid Capacity7.8 gal

Engine

Engine specifications
Displacement638 in³
Number of Cylinders6
Max Power150.0 hp
Net Power Gear 5-6150.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow51.0 gal/min
Pump Typeclosed-centre constant-presure system w/ variable displacement piston pump
Relief Valve Pressure2,150 psi

Dimensions

Dimensions specifications
Wheelbase234 in
Overall Length328 in
Width Over Tires97 in
Height to Top of Isomount Cab133 in
Blade Base102 in
Tandem Axle Wheelbase60 in

Transmission

Transmission specifications
Max Speed - Forward25.5 mph
Max Speed - Reverse25.5 mph
Number of Gears - Forward6
Number of Gears - Reverse6
Transmission Typedirect drive power shift

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left26 in
Side Shift Right26 in
Max Depth of Cut17 in

Circle

Circle specifications
Max Lift Above Ground18 in
Max Reach Outside Tires - Left77 in
Max Reach Outside Tires - Right72 in
Diameter60 in
Rotation360 °
Shift Left26 in
Shift Right21 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total32 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius288 in
Articulation Angle50 °
