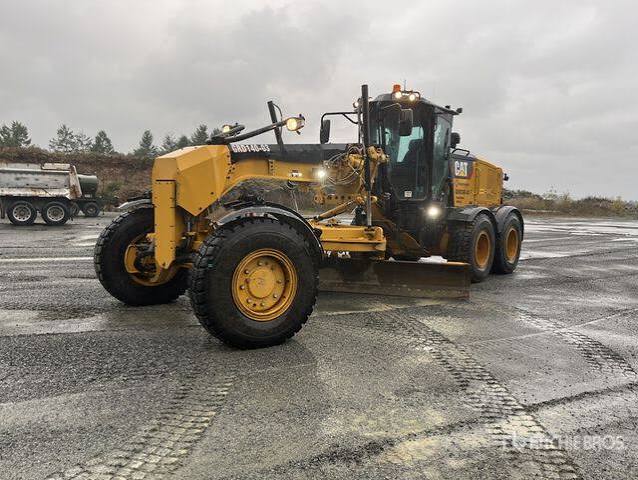

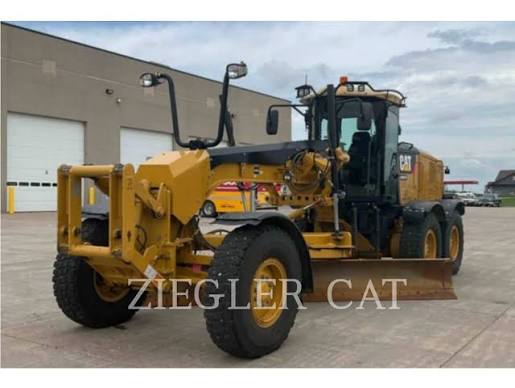

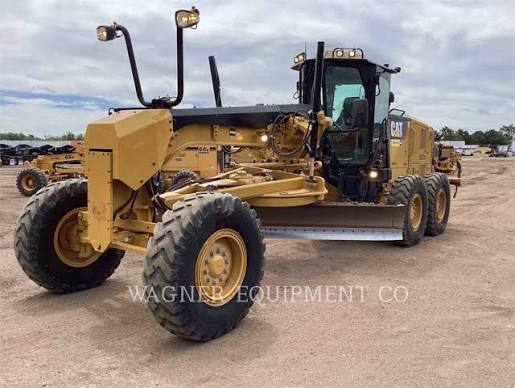

140M2

Specifications

191 data points

Operating Specifications specifications
Max Operation Weight - Total	49,787 lb
Max Operation Weight - Front Axle	13,343 lb
Max Operation Weight - Rear Axle	36,444 lb
Fuel Capacity	109.9 gal
Hydraulic System Fluid Capacity	26.5 gal
Tandem Case Fluid Capacity (each)	17.0 gal
Cooling System Fluid Capacity	14.8 gal
Transmission Fluid Capacity	17.2 gal
Circle Gearbox Fluid Capacity	1.9 gal
Oil System Fluid Capacity	8.0 gal
Articulation Angle - Left/Right	20 °
Forward - 1st	2.5 mph
Forward - 2nd	3.4 mph
Forward - 3rd	5.0 mph
Forward - 4th	6.9 mph
Forward - 5th	10.6 mph
Forward - 6th	14.5 mph
Reverse - 1st	2
Reverse - 2nd	3.7 mph
Reverse - 3rd	5.4 mph
Steering Range - Left/Right	48 °
Top Speed - Forward	29.0 mph
Top Speed - Reverse	22.9 mph
Turning Radius - Outside Front Tires	300 in
Forward - 7th	19.9 mph
Forward - 8th	29.0 mph
Reverse - 4th	8.4 mph
Reverse - 5th	15.7 mph
Reverse - 6th	22.9 mph

Engine specifications
Displacement	568 in³
Power Measured @	2,100 rpm
Number of Cylinders	6
Torque Measured @	2,100 rpm
Stroke	6 in
Bore	5 in
Net Torque Gears 7-8	920 lb-ft
Emissions	U.S. Tier 4 Interim/EU Stage IIIB
Base Power (1st Gear) - Net	193.0 hp
Derating Altitude	120,000 in
Maximum Torque	920 lb-ft
High - Ambient Capability	122 °
V Plus Range - Net	193.1 – 242.7 hp
Base Power (1st Gear) - Net - Metric	196.0 hp
V Plus Range - Net - Metric	193.1 – 242.7 hp
Speed at Rated Power	2,100 rpm
High Ambient - Fan Speed - Maximum	1,550 rpm
High Ambient - Fan Speed - Minimum	500 rpm
High Ambient - Fan Speed - Standard	1,400 rpm
V Plus - Gear 8F, Net	243.0 hp
V Plus - Gear 5F, Net	228.0 hp
V Plus - Gear 2F, Net	202.0 hp
V Plus - Gear 7F, Net	238.0 hp
V Plus - Gear 1F, Net	193.0 hp
V Plus - Gear 4F, Net	223.0 hp
V Plus - Gear 3F, Net	213.0 hp
V Plus - Gear 6F, Net	233.0 hp
Standard Capability	109 °

Weights specifications
Operating Weight - Typically Equipped	43,686 lb
Operating Weight - Typically Equipped - Front Axle	12,483 lb
Operating Weight - Typically Equipped - Rear Axle	31,203 lb
Operating Weight - Typically Equipped - Total	43,686 lb
Gross Vehicle Weight - Maximum - Front Axle	17,009 lb
Gross Vehicle Weight - Maximum - Rear Axle	37,860 lb
Gross Vehicle Weight - Maximum - Total	54,869 lb
Gross Vehicle Weight - Base - Front Axle	9,534 lb
Gross Vehicle Weight - Base - Rear Axle	28,381 lb
Gross Vehicle Weight - Base - Total	37,916 lb

Moldboard specifications
Moldboard Height	24 in
Moldboard Width	144 in
Moldboard Thickness	1 in
Side Shift Left	20 in
Side Shift Right	26 in
Max Depth of Cut	28 in
Blade Pull at Max Weight	20,044 lb
Blade Down Pressure	22,884 lb
Arc Radius	16 in
Blade Width	144 in
Cutting Edge Thickness	1 in
Cutting Edge Width	6 in
End Bit - Thickness	1 in
End Bit - Width	6 in
Throat Clearance	7 in
Blade Pull - Maximum GVW	34,072 lb
Blade Down Pressure - Base GVW	16,365 lb
Blade Down Pressure - Maximum GVW	29,196 lb
Blade Pull - Base GVW	25,765 lb

Blades specifications
Maximum Shoulder Reach Outside of Tires - Left	71 in
Maximum Shoulder Reach Outside of Tires - Right	78 in
Moldboard Sideshift - Left	20 in
Moldboard Sideshift - Right	26 in
Maximum Lift Above Ground	19 in
Blade Tip Range - Backward	5 °
Blade Tip Range - Forward	40 °
Circle Centershift - Left	27 in
Circle Centershift - Right	29 in
Maximum Blade Position Angle	90 °
Maximum Depth of Cut	28 in

Circle specifications
Max Lift Above Ground	19 in
Max Reach Outside Tires - Left	71 in
Max Reach Outside Tires - Right	78 in
Diameter	60 in
Blade Tip Angle - Front	40 °
Rotation	360 °
Blade Tip Angle - Rear	5 °
Shift Left	27 in
Shift Right	29 in

Steering System specifications
Turning Radius	306 in
Articulation Angle	20 °

Service Refill specifications
Cooling System	14.8 gal
Circle Drive Housing	1.8 gal
Engine Oil	7.9 gal
Front Wheel Spindle Bearing Housing	0.2 gal
Fuel Capacity	110.0 gal
Hydraulic System - Tank	16.9 gal
Tandem Housing - Each	16.9 gal
Transmission - Differential - Final Drives	17.2 gal
Hydraulic System - Total	26.4 gal

Ripper specifications
Penetration Force	20,693 lb
Pry-Out Force	27,655 lb
Ripper Shank Holders	5
Ripping Depth - Maximum	17 in
Machine Length Increase, Beam Raised	41 in
Ripper Shank Holder Spacing	21 in

Frame specifications
Front Frame Structure - Height	13 in
Front Frame Structure - Width	11 in
Circle - Blade Beam Thickness	2 in
Circle - Diameter	60 in
Drawbar - Height	6 in
Front Axle - Height to Center	24 in
Front Axle - Total Oscillation per Side	32 °
Front Axle - Wheel Lean - Left/Right	18 °
Drawbar - Width	3 in
Drawbar - Thickness	1 in
Front-Top/Bottom Plate - Thickness	1 in
Front-Top/Bottom Plate - Width	12 in

Tandems specifications
Drive Chain Pitch	2 in
Height	20 in
Sidewall Thickness - Inner	1 in
Sidewall Thickness - Outer	1 in
Tandem Oscillation - Front Down	25 °
Tandem Oscillation - Front Up	15 °
Wheel Axle Spacing	60 in
Width	8 in

Scarifier specifications
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	5 in
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18 in
Front, V-Type, 5 or 11 Tooth - Working Width	41 in
Mid, V-Type - Scarifier Shank Holder Spacing	5 in
Mid, V-Type - Scarifier Shank Holders	11
Mid, V-Type - Scarifying Depth, Maximum	12 in
Mid, V-Type - Working Width	47 in
Rear - Scarifier Shank Holder Spacing	11 in
Rear - Scarifier Shank Holders	9
Rear - Scarifying Depth, Maximum	17 in
Rear - Working Width	84 in
Front, V-Type - Scarifier Shank Holder Spacing	18 in
Front, V-Type - Scarifying Depth, Maximum	41 in
Front, V-Type - Working Width	47 in
