Caterpillar

14H

Motor Grader

Max Operation Weight - Total
58,509 lb
Net Power Gear 5-6
240.0 hp
All motor graders

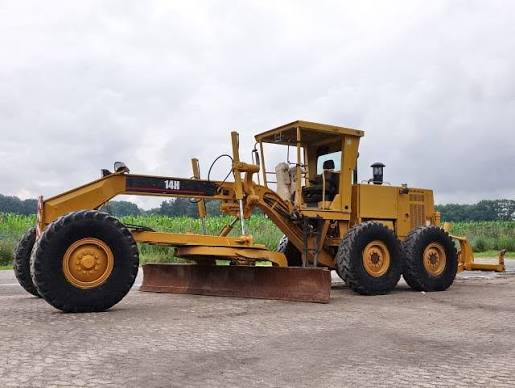

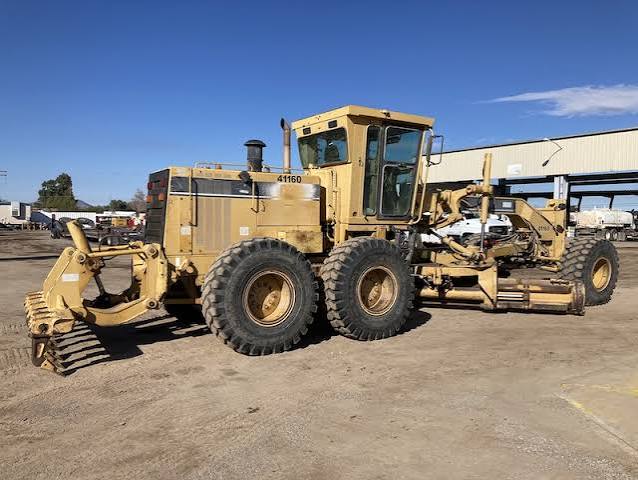

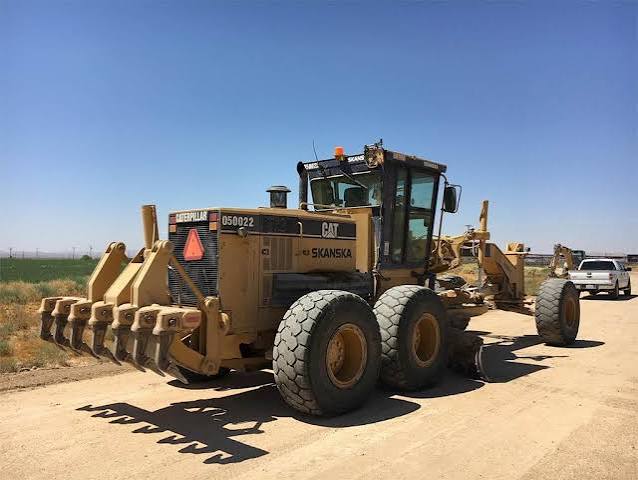

Caterpillar 14H Motor Grader
1 / 5
Image 1 of 5
Image: micoequipment.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total58,509 lb
Max Operation Weight - Front Axle19,425 lb
Max Operation Weight - Rear Axle39,084 lb
Tire Size16-24 12PR (G-2)
Std Operation Weight - Front Axle11,695 lb
Std Operation Weight - Rear Axle29,770 lb
Tandem Case Fluid Capacity (each)25.5 gal
Operating Voltage24 V
Cooling System Fluid Capacity12.8 gal
Alternator Supplied Amperage50 A
Transmission Fluid Capacity21.6 gal
Circle Gearbox Fluid Capacity1.6 gal

Engine

Engine specifications
Power Measured @2,000 rpm
Number of Cylinders6
Net Power Gear 5-6240.0 hp
Net Power Gear 1-2220.0 hp
Net Power Gear 4-6240.0 hp

Hydraulic System

Hydraulic System specifications
Pump Typeaxial piston
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Wheelbase254 in
Width Over Tires111 in
Height to Top of Isomount Cab132 in
Tandem Axle Wheelbase66 in
Front Ground Clearance26 in
Rear Ground Clearance16 in

Transmission

Transmission specifications
Max Speed - Forward26.6 mph
Max Speed - Reverse29.4 mph
Number of Gears - Forward8
Number of Gears - Reverse8
Transmission Typedirect drive power shift planetary

Moldboard

Moldboard specifications
Moldboard Height27 in
Moldboard Thickness1 in
Side Shift Left26 in
Side Shift Right31 in
Max Depth of Cut17 in
Blade Pull at Max Weight52,660 lb
Blade Down Pressure34,518 lb

Circle

Circle specifications
Max Lift Above Ground17 in
Max Reach Outside Tires - Left81 in
Max Reach Outside Tires - Right82 in
Diameter72 in
Blade Tip Angle - Front40 °
Blade Tip Angle - Rear5 °
Shift Left26 in
Shift Right21 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total32 °
Ground Clearance26 in

Steering System

Steering System specifications
Articulation Angle20 °
