John Deere

870D

Motor Grader

Max Operation Weight - Total
48,620 lb
Max Power
235.0 hp
Net Power Gears 7-8
235.0 hp
Net Power Gear 5-6
200.0 hp
All motor graders

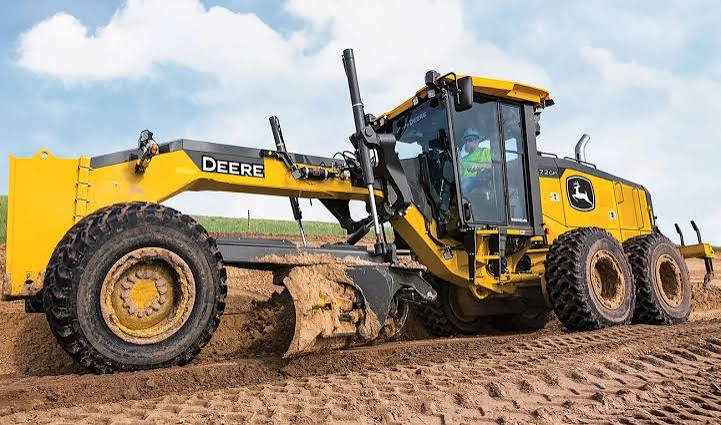

John Deere 870D Motor Grader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

66 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total48,620 lb
Max Operation Weight - Front Axle16,023 lb
Max Operation Weight - Rear Axle32,576 lb
Std Operation Weight - Total34,750 lb
Tire Size14.00R24 Radial PR
Fuel Capacity106.0 gal
Std Operation Weight - Front Axle9,200 lb
Std Operation Weight - Rear Axle25,550 lb
Hydraulic System Fluid Capacity14.0 gal
Tandem Case Fluid Capacity (each)20.0 gal
Operating Voltage24 V
Cooling System Fluid Capacity13.0 gal
Alternator Supplied Amperage100 A
Transmission Fluid Capacity6.0 gal
Circle Gearbox Fluid Capacity1.5 gal
Rear Diff/Final Drive Fluid Capacity9.5 gal

Engine

Engine specifications
Engine Model6081H
Displacement494 in³
Power Measured @2,000 rpm
Number of Cylinders6
AspirationTurbocharged with air-to-air aftercooler
Torque Measured @1,000 rpm
Max Power235.0 hp
Net Power Gears 7-8235.0 hp
Net Torque Gears 7-8913 lb-ft
Net Power Gear 5-6200.0 hp
Net Power Gear 1-2180.0 hp
Net Power Gear 4-6185.0 hp
Net Torque Gears 5-6835 lb-ft
Net Torque Gears 1-2731 lb-ft
Net Torque Gears 3-4793 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow54.7 gal/min
Pump TypeVariable-displacement piston
Relief Valve Pressure2,750 psi

Dimensions

Dimensions specifications
Wheelbase241 in
Overall Length347 in
Width Over Tires100 in
Height to Top of Isomount Cab126 in
Blade Base101 in
Tandem Axle Wheelbase61 in
Front Ground Clearance25 in

Transmission

Transmission specifications
Max Speed - Forward25.6 mph
Max Speed - Reverse25.6 mph
Number of Gears - Forward8
Number of Gears - Reverse8
Transmission TypePowershift with direct drive

Moldboard

Moldboard specifications
Moldboard Height27 in
Moldboard Width170 in
Moldboard Thickness1 in
Side Shift Left27 in
Side Shift Right27 in
Blade Pull at Max Weight29,319 lb

Circle

Circle specifications
Max Lift Above Ground17 in
Max Reach Outside Tires - Left91 in
Max Reach Outside Tires - Right91 in
Diameter60 in
Blade Tip Angle - Front42 °
Rotation360 °
Blade Tip Angle - Rear5 °
Shift Left31 in
Shift Right29 in

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total32 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius276 in
Articulation Angle22 °
