Caterpillar

160H

Motor Grader

Max Operation Weight - Total
51,326 lb
Max Power
200.0 hp
Net Power Gears 7-8
200.0 hp
Net Power Gear 5-6
200.0 hp
All motor graders

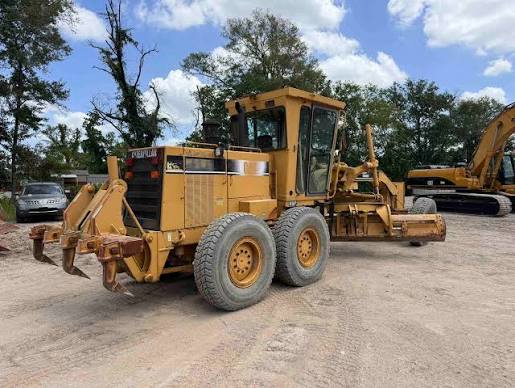

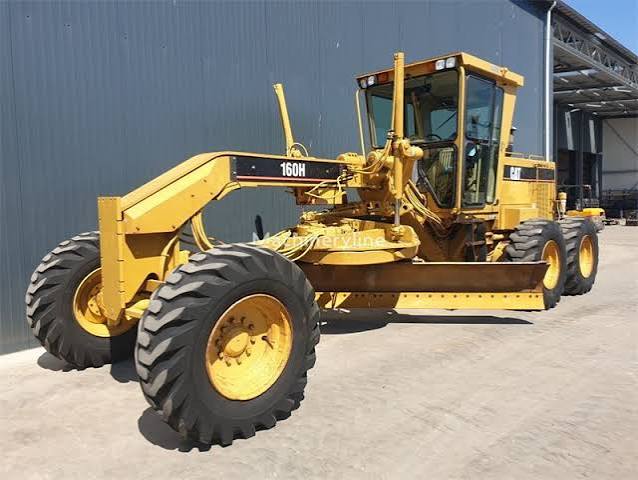

Caterpillar 160H Motor Grader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total51,326 lb
Max Operation Weight - Front Axle18,323 lb
Max Operation Weight - Rear Axle33,003 lb
Std Operation Weight - Front Axle10,117 lb
Std Operation Weight - Rear Axle25,774 lb
Hydraulic System Fluid Capacity21.2 gal
Tandem Case Fluid Capacity (each)17.0 gal
Operating Voltage24 V
Cooling System Fluid Capacity10.1 gal
Circle Gearbox Fluid Capacity1.9 gal
Rear Diff/Final Drive Fluid Capacity12.5 gal

Engine

Engine specifications
Power Measured @2,000 rpm
Number of Cylinders6
Torque Measured @1,000 rpm
Max Power200.0 hp
Net Power Gears 7-8200.0 hp
Net Torque Gears 7-8841 lb-ft
Net Power Gear 5-6200.0 hp
Net Power Gear 1-2180.0 hp

Hydraulic System

Hydraulic System specifications
Pump TypeAxial Piston

Dimensions

Dimensions specifications
Blade Base100 in
Tandem Axle Wheelbase60 in

Transmission

Transmission specifications
Number of Gears - Forward8
Number of Gears - Reverse6

Moldboard

Moldboard specifications
Moldboard Height27 in
Moldboard Thickness1 in
Side Shift Left34 in
Side Shift Right37 in
Max Depth of Cut30 in
Blade Pull at Max Weight44,249 lb
Blade Down Pressure30,442 lb

Circle

Circle specifications
Max Lift Above Ground18 in
Max Reach Outside Tires - Left88 in
Max Reach Outside Tires - Right89 in
Blade Tip Angle - Front40 °
Blade Tip Angle - Rear5 °
Shift Left33 in
Shift Right35 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total32 °

Steering System

Steering System specifications
Turning Radius292 in
Articulation Angle20 °
