Caterpillar

16H

Motor Grader

Max Operation Weight - Total
69,648 lb
Net Power Gear 5-6
285.0 hp
All motor graders

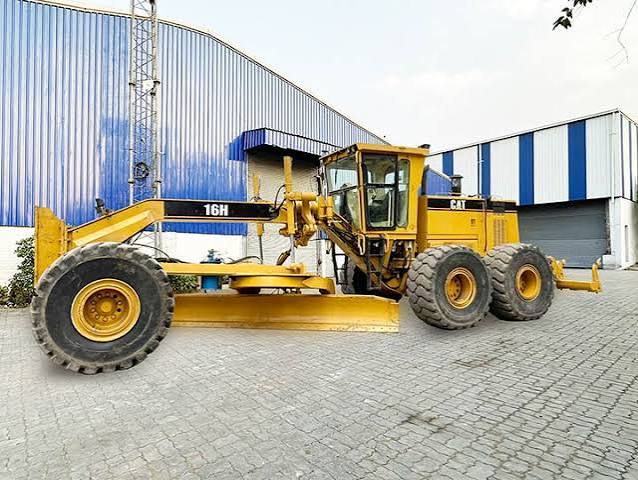

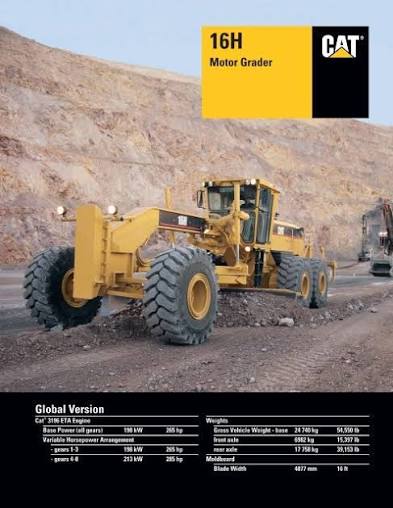

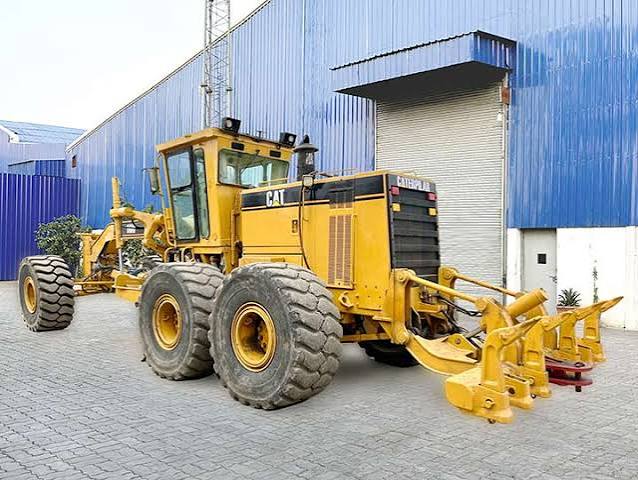

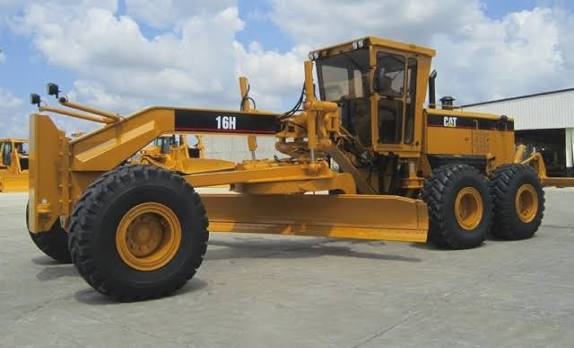

Caterpillar 16H Motor Grader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total69,648 lb
Max Operation Weight - Front Axle19,502 lb
Max Operation Weight - Rear Axle50,146 lb
Tire Size15-25 12PR (E-2)
Fuel Capacity130.0 gal
Std Operation Weight - Front Axle15,397 lb
Std Operation Weight - Rear Axle39,153 lb
Tandem Case Fluid Capacity (each)31.5 gal
Operating Voltage24 V
Cooling System Fluid Capacity12.3 gal
Circle Gearbox Fluid Capacity2.1 gal
Rear Diff/Final Drive Fluid Capacity30.1 gal

Engine

Engine specifications
Power Measured @2,000 rpm
Number of Cylinders6
Net Torque Gears 7-81,143 lb-ft
Net Power Gear 5-6285.0 hp
Net Power Gear 1-2265.0 hp
Net Power Gear 4-6285.0 hp

Hydraulic System

Hydraulic System specifications
Pump Typeaxial piston
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Wheelbase275 in
Overall Length394 in
Height to Top of Isomount Cab139 in
Blade Base121 in
Tandem Axle Wheelbase72 in
Front Ground Clearance29 in
Rear Ground Clearance17 in

Transmission

Transmission specifications
Number of Gears - Forward8
Number of Gears - Reverse8
Transmission Typedirect drive power shift planetary

Moldboard

Moldboard specifications
Moldboard Height31 in
Moldboard Thickness1 in
Side Shift Left26 in
Side Shift Right31 in
Max Depth of Cut19 in
Blade Pull at Max Weight45,131 lb
Blade Down Pressure34,901 lb

Circle

Circle specifications
Max Lift Above Ground17 in
Max Reach Outside Tires - Left91 in
Max Reach Outside Tires - Right91 in
Diameter72 in
Blade Tip Angle - Front40 °
Blade Tip Angle - Rear5 °
Shift Left27 in
Shift Right22 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total32 °
Ground Clearance29 in

Steering System

Steering System specifications
Turning Radius324 in
Articulation Angle20 °
