Caterpillar

205 LC

Excavator

Operating Weight
28,341 lb
Max Digging Depth
178 in
Max Digging Depth
197 in
Net Power
71.0 hp
All excavators

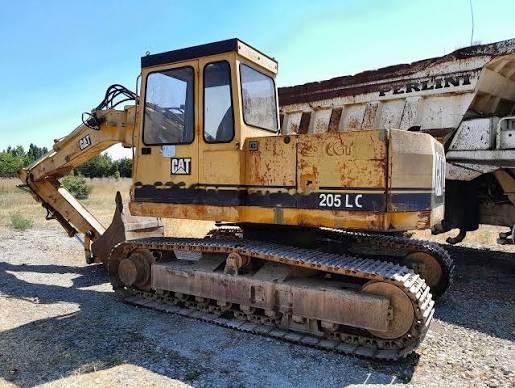

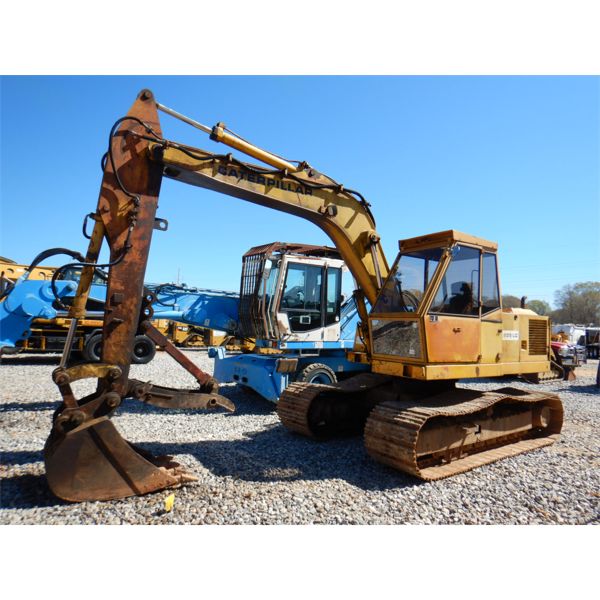

Caterpillar 205 LC Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,341 lb
Fuel Capacity48.9 gal
Hydraulic Pump Flow Capacity49.2 gal/min
Hydraulic System Fluid Capacity63.5 gal
Hydraulic System Relief Valve Pressure4,351 psi
Engine Oil Capacity2.3 gal
Cooling System Fluid Capacity8.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.6 gal

Engine

Engine specifications
Engine Model4.236
Displacement236 in³
Power Measured @2,150 rpm
Net Power71.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground119 in
Tail Swing Radius76 in
Width to Outside of Tracks95 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge76 in
Max Travel Speed2.5 mph
Shoe Size20 in
Number of Shoes per Side47
Drawbar Pull27,202 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth178 in
Max Reach Along Ground285 in
Max Loading Height178 in
Max Vertical Wall Digging Depth103 in
Max Cutting Height261 in
Shipping Length of Unit287 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.41 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth197 in
Max Vertical Wall Digging Depth121 in
Max Cutting Height268 in
Max Loading Height183 in
Max Reach Along Ground304 in
Shipping Length of Unit288 in
Shipping Height of Unit119 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth217 in
Max Cutting Height270 in
Max Loading Height189 in
Max Vertical Wall Digging Depth120 in
Max Reach Along Ground322 in
Shipping Length of Unit288 in
Shipping Height of Unit119 in
