Caterpillar
Hitachi
EX135USR
Excavator
23 specifications
1 / 5

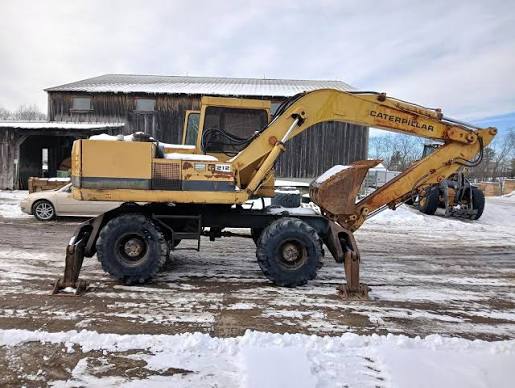

Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 28,290 lb |
|---|---|
| Fuel Capacity | 64.8 gal |
| Hydraulic Pump Flow Capacity | 57.1 gal/min |
| Hydraulic System Fluid Capacity | 87.2 gal |
| Hydraulic System Relief Valve Pressure | 4,351 psi |
| Engine Oil Capacity | 2.5 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
| Tire Size | Dual 10.00-20 |
| Oscillating Axle Angle | 19 ° |
| Front Diff Fluid Capacity | 2.6 gal |
| Rear Diff Fluid Capacity | 4.0 gal |
| Max Steering Angle | 35 ° |
Engine
| Engine Model | T4.236 |
|---|---|
| Displacement | 236 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 94.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 100 in |
| Overall Width | 8 in |
| Tail Swing Radius | 83 in |
| Upper Structure Clearance | 49 in |
| Overall Width - Outriggers Down | 144 in |
Transmission
| Max Travel Speed | 12.4 mph |
|---|---|
| Transmission Type | Fully hydrostatic variable displacement piston motor |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.29 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 189 in |
|---|---|
| Max Cutting Height | 278 in |
| Max Reach Along Ground | 304 in |
| Max Loading Height | 194 in |
| Shipping Length of Unit | 315 in |
| Shipping Height of Unit | 125 in |
| Max Vertical Wall Dig Depth | 108 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 216 in |
|---|---|
| Max Cutting Height | 285 in |
| Max Reach Along Ground | 329 in |
| Max Loading Height | 202 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 316 in |
| Max Vertical Wall Dig Depth | 134 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 235 in |
|---|---|
| Max Cutting Height | 278 in |
| Max Reach Along Ground | 343 in |
| Max Loading Height | 198 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 315 in |
| Max Vertical Wall Dig Depth | 137 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 189 in |
|---|---|
| Max Cutting Height | 278 in |
| Max Reach Along Ground | 304 in |
| Max Loading Height | 194 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 315 in |
| Max Vertical Wall Dig Depth | 108 in |
