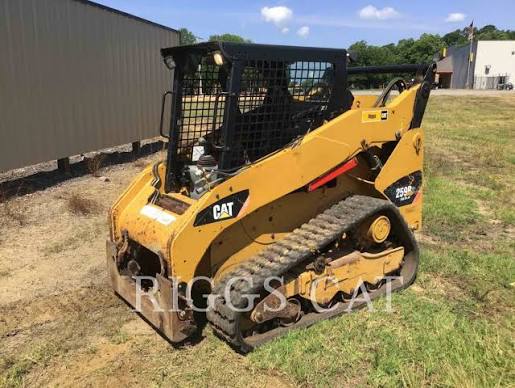

259B3

Specifications

74 data points

Operating Specifications specifications
Operating Weight	9,226 lb
Max Speed - high range	8.5 mph
Max Speed - low range	5.9 mph
Fuel Capacity	22.2 gal
Hydraulic System Fluid Capacity	14.6 gal
Cooling System Fluid Capacity	2.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Capacity	2.4 gal
Breakout Force - Tilt Cylinder	4,508 lb
Tipping Load	5,900 lb
Rated Operating Capacities - 35% Tipping Load	2,065 lb
Rated Operating Capacities - 50% Tipping Load	2,950 lb
Ground Contact Area	1,495 in³
Ground Pressure	6 psi
Rated Operating Capacity with Optional Counterweight	3,000 lb

Weights specifications
Operating Weight	8,934 lb

Dimensions specifications
Ground Clearance	9 in
Reach at Max Lift and Dump	30 in
Length with Bucket on Ground	135 in
Width Over Tracks	70 in
Length with Bucket	135 in
Clearance at Max Lift and Dump	89 in
Turning Radius from Center - inc bucket	86 in
Turning Radius from Center - machine rear	58 in
Bucket Pin Height - Maximum Lift	120 in
Maximum Overall Height	152 in
Clearance at Maximum Lift and Dump	88 in
Bucket Pin Height - Carry Position	8 in
Turn Radius from Center - Bucket	86 in
Turn Radius from Center - Coupler	55 in
Turn Radius from Center - Rear	58 in
Maximum Reach - With Arms Parallel	53 in
Rack Back Angle - Maximum Height	87 °
Departure Angle	35 °
Maximum Dump Angle	50 °
Length - Track on Ground	59 in
Overall Length - Track	79 in
Reach at Maximum Lift/Dump	29 in
Vehicle Width	66 in
