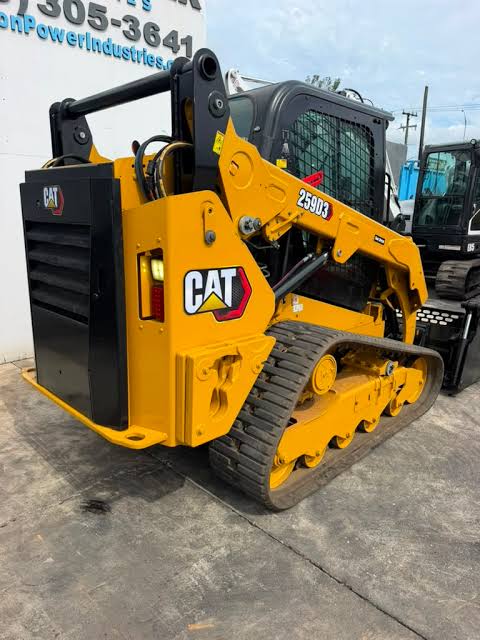

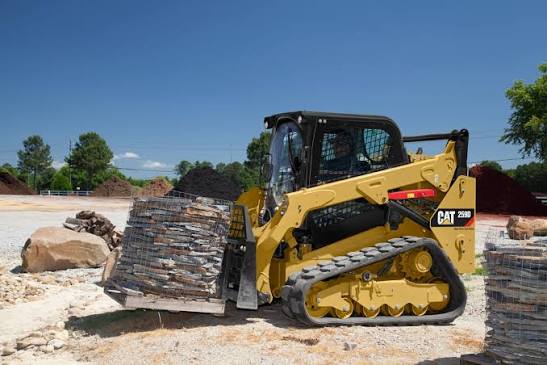

259D

Specifications

93 data points

Operating Specifications specifications
Operating Weight	8,847 lb
Max Speed - high range	8.6 mph
Max Speed - low range	6.0 mph
Fuel Capacity	27.8 gal
Hydraulic System Fluid Capacity	13.3 gal
Cooling System Fluid Capacity	3.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	80 A
Engine Oil Capacity	3.0 gal
Breakout Force - Tilt Cylinder	5,035 lb
Tipping Load	5,800 lb
Rated Operating Capacities - 35% Tipping Load	2,030 lb
Rated Operating Capacities - 50% Tipping Load	2,900 lb
Rated Operating Capacity with Optional Counterweight	3,100 lb
Ground Contact Area - With 400 mm/15.7 in Track	1,848 in³
Ground Pressure - With 400 mm/15.7 in Track	5 psi
Ground Contact Area - With 320 mm/12.6 in Track	1,483 in³
Ground Pressure - With 320 mm/12.6 in Track	6 psi

Weights specifications
Operating Weight	8,945 lb

Hydraulic System specifications
Pump Flow	20.1 gal/min
Relief Valve Pressure	3,336 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	39.0 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3,335 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow	20.0 gal/min
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	58.0 hp
Hydraulic Flow - High Flow - Loader Hydraulic Flow	30.0 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure	3,335 psi

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	24 in
Length with Bucket on Ground	137 in
Overall Height	155 in
Length with Bucket	138 in
Clearance at Max Lift and Dump	90 in
Turning Radius from Center - machine rear	62 in
Dump angle	52 °
Bucket Pin Height - Maximum Lift	121 in
Bucket Pin Height - Carry Position	8 in
Maximum Overall Height	154 in
Clearance at Maximum Lift and Dump	90 in
Reach - Maximum Lift/Dump	24 in
Maximum Dump Angle	52 °
Departure Angle	35 °
Rack Back Angle - Maximum Height	87 °
Length - Track on Ground	59 in
Overall Length - Track	79 in
Bucket Pin Reach - Maximum Lift	9 in
Overall Track Length	79 in
Turning Radius from Center - Coupler	55 in
Maximum Reach - With Arms Parallel to Ground	51 in
Turning Radius from Center - Bucket	86 in
Vehicle Width (400 mm/15.7 in tracks)	69 in
Vehicle Width (320 mm/12.6 in tracks)	66 in

General Specifications specifications
Operating Width IN. (CM)	66 (168) / 69 (175) Starting 2019 Model Year
Engine Power HP (KW)	73 (54) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)	2,900 (1,315) Starting 2016 Model Year
Rated Operating Capacity LBS (KG) 50%	2,030 (921) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 35%	2,030 (921) Starting 2020 Model Year

Power Train specifications
Travel Speed - Forward or Reverse - One Speed	5.9 mph
Travel Speed - Forward or Reverse - Two Speed	8.5 mph

Air Conditioning System specifications
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Noise Level specifications
Inside Cab*	83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**	103 dB(A)
