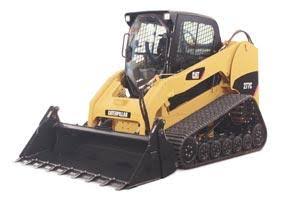

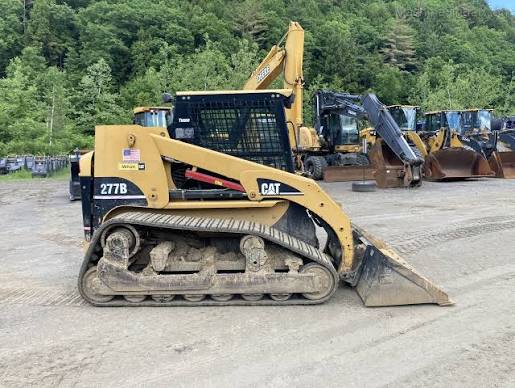

277B

Specifications

70 data points

Operating Specifications specifications
Operating Weight	9,370 lb
Max Speed - high range	7.0 mph
Fuel Capacity	25.1 gal
Hydraulic System Fluid Capacity	13.8 gal
Cooling System Fluid Capacity	2.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Capacity	2.7 gal
Breakout Force - Tilt Cylinder	5,484 lb
Tipping Load	5,900 lb
Rated Operating Capacities - 35% Tipping Load	2,065 lb
Rated Operating Capacities - 50% Tipping Load	2,950 lb
Ground Contact Area	2,898 in³
Ground Pressure	3 psi

Weights specifications
Operating Weight	9,411 lb

Dimensions specifications
Ground Clearance	14 in
Height - Top of Cab	83 in
Reach at Max Lift and Dump	28 in
Length with Bucket on Ground	145 in
Width Over Tracks	76 in
Length with Bucket	145 in
Clearance at Max Lift and Dump	94 in
Turning Radius from Center - inc bucket	99 in
Turning Radius from Center - machine rear	61 in
Bucket Pin Height - Maximum Lift	122 in
Clearance at Maximum Lift and Dump	93 in
Bucket Pin Height - Carry Position	10 in
Maximum Overall Height	158 in
Turn Radius from Center - Coupler	63 in
Turn Radius from Center - Bucket	99 in
Maximum Reach - With Arms Parallel	57 in
Turn Radius from Center - Rear	61 in
Length - Track on Ground	81 in
Overall Length - Track	98 in
Reach at Maximum Lift/Dump	27 in
Vehicle Width	75 in

Cab & Operator specifications
FOPS	SAE J/ISO 3449 APR98 Level I ISO 3449:1992 Level I
ROPS	SAE J1040 MAY94 ISO 3471:1994
FOPS Level II	SAE J/ISO 3449 APR98 Level II ISO 3449:1992 Level II
