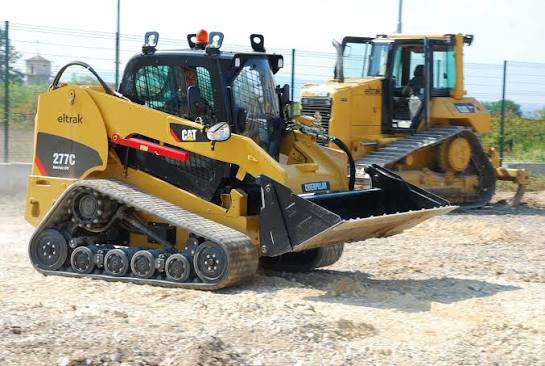

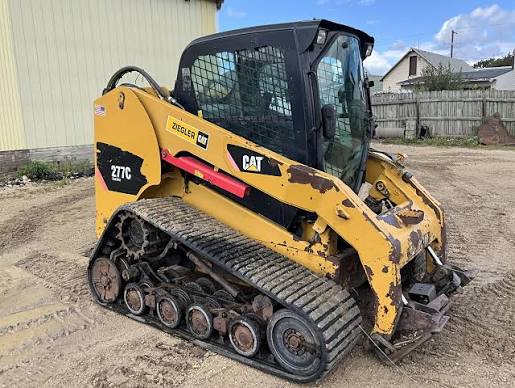

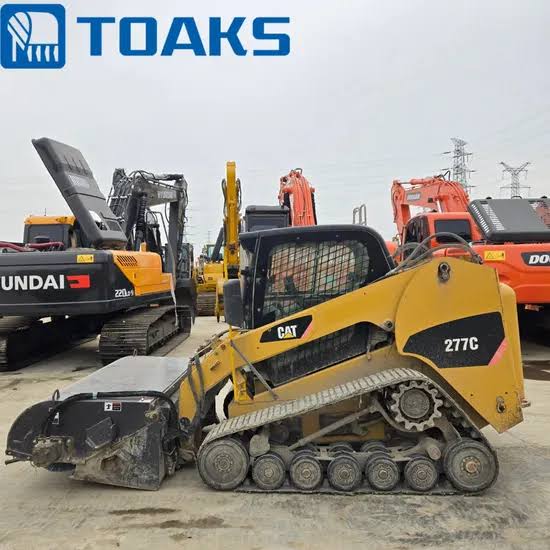

277C

Specifications

81 data points

Operating Specifications specifications
Operating Weight	9,495 lb
Max Speed - high range	9.3 mph
Max Speed - low range	5.6 mph
Fuel Capacity	25.9 gal
Hydraulic System Fluid Capacity	15.1 gal
Cooling System Fluid Capacity	3.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Capacity	2.7 gal
Breakout Force - Tilt Cylinder	7,308 lb
Tipping Load	6,675 lb
Rated Operating Capacities - 35% Tipping Load	2,337 lb
Rated Operating Capacities - 50% Tipping Load	3,200 lb
Ground Contact Area	2,542 in³
Ground Pressure	4 psi
Rated Operating Capacity with Optional Counterweight	3,571 lb

Weights specifications
Operating Weight	9,495 lb

Hydraulic System specifications
Pump Flow	22.2 gal/min
Relief Valve Pressure	3,336 psi
Loader Hydraulic Pressure	3,335 psi
Hydraulic Power	42.8 hp
Loader Hydraulic Flow	22.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Flow	33.0 gal/min
Maximum Loader Hydraulic Pressure	4,061 psi

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	25 in
Length with Bucket on Ground	145 in
Width Over Tracks	78 in
Length with Bucket	146 in
Clearance at Max Lift and Dump	96 in
Turning Radius from Center - inc bucket	92 in
Turning Radius from Center - machine rear	64 in
Bucket Pin Height - Maximum Lift	124 in
Clearance at Maximum Lift and Dump	96 in
Maximum Overall Height	157 in
Bucket Pin Height - Carry Position	8 in
Turn Radius from Center - Coupler	59 in
Turn Radius from Center - Bucket	92 in
Maximum Reach - With Arms Parallel	55 in
Turn Radius from Center - Rear	64 in
Rack Back Angle - Maximum Height	85 °
Departure Angle	42 °
Maximum Dump Angle	40 °
Length - Track on Ground	71 in
Overall Length - Track	90 in
Reach at Maximum Lift/Dump	24 in
Vehicle Width	78 in
